AKTAKOM AM-1142 Digital Multimeter
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download
Installation Guide:Download
Optical USB True RMS Bar graph indicator

Multimeter with connection to PC function (PC-Link). True RMS. Measurements: DC/AC Voltage up to 1000V, DC/AC Current 10A; Resistance up to 66MΩ; Capacity up to 66mF; Temperature -55C...1000C; Frequency up to 66kHz (line) /up to 66MHz (pulse) and Duty Cycle 1...99%. Features: Diode test; Continuity test, Min/Max and peak values measurements, Relative measurements.

Retail price :$99.00

Estimated shipping cost $12 (Continental US only!)
Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Almost sold out,1left

BuyAdd to cart

Notify when back in stock

The multimeter AKTAKOM AM-1142 is designed for measuring DC and AC voltage, resistance, capacitance, frequency, temperature, duty cycle, diode test and continuity test of electrical circuits. This device has dual display and USB 1.1 interface.

DC Voltage (DCV)1000 V
DCV Accuracy(0.5%+5)
DCV Resolution0.1 mV
AC Voltage (ACV)1000 V
ACV Accuracy(1.0%+5)
ACV Resolution0.1 mV
DC Current (DCA)10 A
DCA Accuracy(1.0%+3)
DCA Resolution0.1 μA
AC Current (ACA)10 A
ACA Accuracy(1.5%+5)
ACA Resolution0.1 μA
Frequency0.001 Hz...66 kHz (line), 0.01 Hz...66 MHz (pulse)
Duty Cycle0.01%...99.99%
Resistance0.1 Ω...66 MΩ
Capacitance1 pF...66 mF
Temperature-55 C...+1000 C
Temperature sensor typeType K thermocouple
Diode test+
Continuity check+
True RMS+
Autorange+
Data hold+
Relative measurement+
InterfaceOptical USB
DisplayLCD, 6600 counts
Bar graph indicator+
Power supply9 V battery
Dimensions7.5 x 3.5 x 1.6 in / 190 x 90 x40 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
660 mV 0.1 mV (0.5%+5 digits) 3.7995 mV mV
6.6 V 1 mV (0.8%+5 digits) 0.057792 V V
66 V 10 mV (0.8%+5 digits) 0.57792 V V
660 V 100 mV (0.8%+5 digits) 5.7792 V V
1000 V 1 V (1.0%+2 digits) 11.99 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 mV 0.1 mV (1.0%+5 digits) 7.099 mV mV
6.6 V 1 mV (1.0%+5 digits) 0.07099 V V
66 V 10 mV (1.0%+5 digits) 0.7099 V V
660 V 100 mV (1.0%+5 digits) 7.099 V V
1000 V 1 V (0.5%+5 digits) 9.995 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 A 0.1 A (1.0%+3 digits) 6.899 A A
6600 A 1 A (1.0%+3 digits) 68.99 A A
66 mA 0.01 mA (1.5%+3 digits) 1.01985 mA mA
600 mA 0.1 mA (1.5%+3 digits) 9.2985 mA mA
10 A 10 mA (1.8%+5 digits) 0.22982 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 A 0.1 A (1.5%+5 digits) 10.3985 A A
6600 A 1 A (1.5%+5 digits) 103.985 A A
66 mA 0.01 mA (1.8%+8 digits) 1.26782 mA mA
600 mA 0.1 mA (1.8%+8 digits) 11.5982 mA mA
10 A 10 mA (2.0%+8 digits) 0.2798 A A

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
660 Ω 0.1 Ω (1.2%+2 digits) 8.1188 Ω Ω
6.6 kΩ 1 Ω (1.2%+2 digits) 0.081188 kΩ
66 kΩ 10 Ω (1.2%+2 digits) 0.81188 kΩ
660 kΩ 100 Ω (1.2%+2 digits) 8.1188 kΩ
6.6 MΩ 1 kΩ (1.2%+2 digits) 0.081188 MΩ
66 MΩ 10 kΩ (2.0%+5 digits) 1.3698 MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6.6 nF 1 pF (5.0%+5 digits) 0.33495 nF nF
66 nF 10 pF (3.0%+3 digits) 2.0097 nF nF
660 nF 100 pF (3.0%+3 digits) 20.097 nF nF
6.6 F 1 nF (3.0%+3 digits) 0.20097 F F
66 F 10 nF (5.0%+3 digits) 3.3295 F F
660 F 100 nF (5.0%+3 digits) 33.295 F F
6.6 mF 1 F (5.0%+3 digits) 0.33295 mF mF
66 mF 10 F Unspecified Unspecified mF

Specifications

FunctionRangeResolutionAccuracy
DC voltage660mV 0,1mV ±(0,5%+5)
6,6V/66V/660V 1/10/100mV (0,8%+5)
1000V (1,0%+2)
AC voltage660mV/6,6V/66V/660V 0,1/1/10/100mV (1,0%+5)
1000V 1V (1,5%+5)
DC current600μA/6000μA 0,1/1μA(1,0%+3)
60mA/600mA 0,01/0,1mA (1,5%+3)
10A 10mA (1,8%+5)
AC current600μA/6000μA 0,1/1μA (1,5%+3)
60mA/600mA 0,01/0,1mA (1,8%+8)
10A 10mA (2,0%+8)
Resistance660Ω/6,6kΩ/66kΩ/660kΩ/6,6MΩ 0,1/1/10/100/1000Ω (1,2%+2)
66MΩ 10kΩ (2,0%+5)
Capacitance6,6nF 1pF (5,0%+5)
66nF/660nF/6,6μF 10pF/100pF/1nF (3,0%+3)
66μF/660μF/6,6 mF 10nF/100nF/1μF (5,0%+3)
66mF 10μF not defined
Frequency (line)6Hz...66kHz 0,001/0,01Hz (0,05%+8)
Frequency (pulse)6Hz...66MHz 0,01Hz/10kHz (0,1%+3)
Filling ratio1%...99% 0,01% (2,0%+10)
Temperature-55°C...0C 0,1C (5,0%+4C)
1C...400C (2,0%+3C)
401C...1000C 1C 2,0%

  • True RMS;
  • Two-line LCD display with backlight: 6600 digital display counts;
  • Bar graph indication and frequency measurement path (65 segments);
  • Measurements of MIN/MAX and peak values;
  • Relative measurements;
  • Diodes test/Continuity test;
  • 2 protective fuses;
  • Low battery indicator/Auto turn-off;
  • Optical USB 1.1interface for PC connection;
  • Supply: battery 9V («Krona»);
  • Dimensions: 190x90x40mm/7.5x3.5x1.6in
  • Weight: about 500g/17.6oz

General accessories:

  • Test leads

  • Thermocouple K-Type

  • Thermocouple adapter

  • USB-interface cable

  • Battery 9V

  • Soft case

  • User manual

The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is paid-for and its cost is included into device value. In the new version of the software, when connecting the unit for the first time, it will ask for a license (access key). It is available online after product registration. Insert the entire character set by coping and pasting it from www.tmatlantic.com. Follow the instructions on the site. We recommend that you make and keep a copy of the downloaded software. Follow our websites news releases to receive software updates.

OPTIONAL ACCESSORIES:

Recording your Software on CD

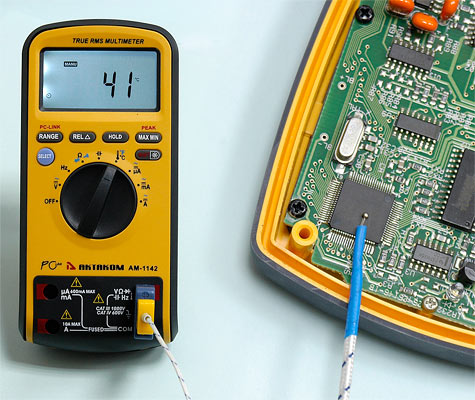

Temperature measurement

To measure temperature:
1. Set the rotary switch to °C°Frange and the LCD will show the current environment temperature.
2. Press SELECT key to select°C or °F.
3. Insert ‘K’ type thermocouples into the COM terminal and °C terminal (or you can insert it by using Multi Function Socket). Takings care to observe the correct polarity.
4. Touch the object with the thermocouple probe for measurement.
5. Read the stable reading from LCD.

To avoid electrical shock and/or damage to the instrument, do not apply more than 250VDC or 220VAC rms between the °C terminal and the COM terminal. To avoid electrical shock, do not use this instrument when voltages at the measurement surface exceed 60VDC or 24V rms AC. To avoid damage or burns. Do not make temperature measurement in microwave ovens.

Current measurement

To measure current set up the Meter as shown in Figure:
1. Turn off power to the circuit. Discharge all high voltage capacitors.
2. Set the rotary switch to the μA, mA or A range.
3. Press the SELECT key to select DCA or ACA measuring mode. (When measuring AC current, the sub-display will show the frequency of AC signal.)
4. Connect the black test lead to the COM terminal and the red test leads to the mA terminal for a maximum of 600mA. For a maximum of 10A, move the red test lead to the A terminal.
5. Break the circuit path to be tested. Touch the black probe to the more negative side of the break; touch the red probe to the more positive side of the break. (Reversing the leads will give a negative reading, but will not damage the Meter.)
6. Turn on power to the circuit; then read the display. Be sure to note the measurement units at the right side of the display (μA, mA or A). When only the figure "OL" displayed, it indicates overrange situation and the higher range has to be selected.
7. Turn off power to the circuit and discharge all high voltage capacitors. Remove the Meter and restore the circuit to normal operation.

To avoid damage to the Meter or injury if the fuse blows, never attempt an in-circuit current measurement where the open-circuit potential to earth is greater than 1000V. To avoid damage to the meter, check the meter's fuse before proceeding. Use the proper terminals, function, and range for your measurement. Never place the probes in parallel with a circuit or component when the leads are plugged into the current terminals.

Capacitance measurement

Capacitance is the ability of a component to store an electrical charge.
The unit of capacitance is the farad (F). Most capacitors are in the nanofarad to microfarad range. The Meter measures capacitance by charging the capacitor with a known current for a known period of time, measuring the resulting voltage, then calculating the capacitance. The measurement takes about 1 second per range.
To measure capacitance set up the Meter as shown in Figure:
1. Set the rotary switch to range.
2. Connect the black and red test leads to the COM and terminals respectively.
3. Connect the test leads tip to the capacitor being measured.
4. Read the displayed value from LCD.
NOTE: The meter may take a few seconds to stabilize reading when measurement on 660μF…66mF. To improve the accuracy of measurements less than 660nF, subtract the residual capacitance of the Meter and leads.

To avoid electrical shock and/or damage to the instrument, disconnect circuit power and discharge all high-voltage capacitors before measuring capacitance. Use the dc voltage function to confirm that the capacitor is discharged.

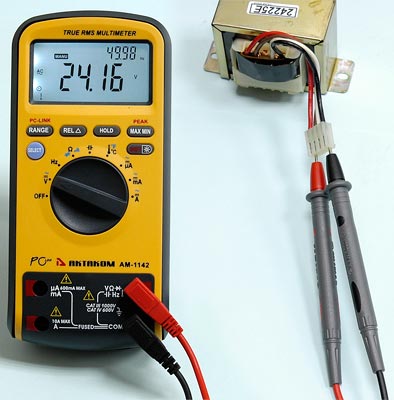

AC and DC Voltage measurement

Set the rotary switch to the position of V.
1 Press SELECT key to select between AC and DC voltage mode.
2 Connect the black and red test leads to the COM and V terminals respectively.
3 Connect the test leads tip in parallel with the circuit to be measured.
4 Read the voltage value on the main-display and read the frequency of AC signal on the sub-display.

Frequency and Duty Cycle measurement

1. Set the rotary switch to the Hz range.
2. Insert the black and red test leads into the COM and Hz input terminals.
3. Connect the test leads tip in parallel with the circuit to be measured. And don’t touch any electrical conductors.
4. Read the frequency on the main-display and read the percent of duty cycle on the sub-display.

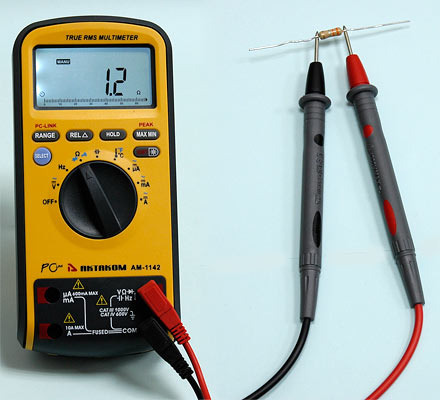

Resistance measurement

1. Set the rotary switch to Ωrange.
2. Connect the black and red test leads to the COM and VΩ terminals respectively.
3. Connect the test leads tip to the circuit being measured.
4. Read the displayed value.

Diode Test

1. Set the rotary switch toΩ range.
2. Press the SELECT key once to activate Diode Test.
3. Connect the black and red test leads to the COM and VΩ terminals respectively.
4. For forward-bias readings on any semiconductor component, place the red test lead tip on the component's anode and place the black test lead tip on the component's cathode.
5. The meter will show the approx. forward voltage of the diode. If the polarity of test leads is reversed, "OL" will be displayed.

Continuity Check

1. Set the rotary switch toΩ range.
2. Press the SELECT key twice to activate Continuity Check.
3. Connect the black and red test leads to the COM andΩ terminals respectively.
4. Connect the test leads tip to the resistance in the circuit being measured.
5. When the test lead to the circuit is below 30Ω, a continuous beeping will indicate it.

Frequently Asked Questions

  • Does AKTAKOM AM-1142 or AM-1152 multimeter have auto power off function?
  • How can I deactivate Auto Power Off function of AKTAKOM AM-1142 or AM-1152 multimeter?
  • How to use PC-Link mode?

  • Does AKTAKOM AM-1142 or AM-1152 multimeter have auto power off function?

    There is Auto Power Off function in AM-1142 and AM-1152 multimeters: the device power automatically goes off if you do not use the device within 30 minutes. 1 minute before the multimeter powers off it will make 3 sound signals and before the powering-off – several more signals. If you’d like to switch on the device after it was automatically powered off press any of SELECT, RANGE, MAX/MIN, HOLD buttons or turn the rotary switch.


    Up

    How can I deactivate Auto Power Off function of AKTAKOM AM-1142 or AM-1152 multimeter?

    To deactivate Auto Power Off function keep REL 2 button pressed for 2 seconds. If you use RS-232 interface to output the readings the multimeter won’t be automatically powered off.


    Up

    How to use PC-Link mode?

    The meter has serial data output function. It can be connected with PC by USB interface, so the measured data can be recorded, analyzed, processed and printed by PC. Before use this function, you need install the PC-Link software and USB driver in your PC.

    1. Make sure the two Install USB driver and Install software files in the attached CD successfully installed before any measurement.
    2. After turning on the meter, press the SHIFT key and the SHIFT symbol will appear on LCD. Then press the RANGE key to enter PC-Link mode, the symbol “PC-LINK” will appear on LCD, and the serial data output function is active.
    3. Connect the meter’s OPTICAL PORT and computer USB port with the USB line.
    4. Select the default sampling rate or you can select other desired sampling rate.
    5. Now press the Start in the PC-LINK SOFT to measure and view the synchronic data or graph in the software interface.
    6. To disable the serial data output function, press SHIFT and then press RANGE again.

    Up

    Aktakom DMM Light Software for Multimeters

    Aktakom DMM Light software is compatible with Aktakom AMM-1130, AM-1142, AM-1152, AM-1171, AM-1118 digital multimeters.

    Learn more... Download
    (11.89 MB)
    Product registration required

    Aktakom DMM Pro Software for Multimeters

    Aktakom DMM Pro software is designed for the full-scale control of Aktakom AM-1142, AM-1152, AMM-1130, AM-1171 digital multimeters.

    Learn more...
