AKTAKOM AMM-1062 Professional Digital Multimeter with Environment Measurements
Click an image to enlarge
Brand: AKTAKOM
Warranty: 1 year
User's Guide: Download

Ideal multifunction environment & DMM instrument with scores of practical applications for professional and home use.

Retail price : $97.00

Estimated shipping cost $12 (Continental US only!)
Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

Buy Add to cart

AKTAKOM AMM-1062 is a 6 in 1 Digital Multimeter with an Environment Measurement that has been designed to combine the functions of Sound Level Meter, Light Meter, Humidity Meter, Temperature Meter & Non-contact AC voltage detector. They are ideal multifunction environment & DMM instruments with scores of practical applications for professional and home use.

Features

The sound level function can be used to measure noise in factories, schools, offices, home, etc, checking acoustics of studios, auditoriums and hi-fi installations.
The light function is used to measure luminance in the field. It is fully cosine corrected for the angular incidence of light. The light sensitive component used in the meter is a very stable, long life silicon ciode. The humidity/temperature uses a humidity /semiconductor sensor and K type thermocouple.
The DMM function include ACV, DCV, AV=CA, DCA, resistance, capacitance, frequency, duty cycle, diode, continuity test and Non-contact AC voltage detector.

DC Voltage (DCV)600 V
DCV Accuracy±(1.0%+4)
DCV Resolution0.1 mV
AC Voltage (ACV)600 V
ACV Accuracy±(1.0%+4)
ACV Resolution0.1 mV
DC Current (DCA)10 A
DCA Accuracy±(1.0%+2)
DCA Resolution0.1 µA
AC Current (ACA)10 A
ACA Accuracy±(1.2%+2)
ACA Resolution0.1 µA
Frequency0.001 Hz...10 MHz
Resistance0.1 Ω...40 MΩ
Capacitance10 pF...100 µF
Temperature-20 °C...+1300 °C / -4 °F...+2372 °F
Temperature sensor typeType K thermocouple
Diode test+
Continuity check+
Autorange+
Data hold+
Relative measurement+
Special featuresHumidity measurement, Sound Level measurement, Illuminance Level measurement
DisplayLCD, 4000 counts
Power supply9 V battery
Dimensions4.7 x 2.4 x 1.6 in / 121 x 60.6 x 40 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
400 mV 0.1 mV ±(1.0%+4 digits) ±4.399 mV mV
4 V 1 mV ±(1.0%+4 digits) ±0.04399 V V
40 V 10 mV ±(1.0%+4 digits) ±0.4399 V V
400 V 100 mV ±(1.5%+4 digits) ±6.3985 V V
600 V 1 V ±(1.5%+4 digits) ±12.985 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 mV 0.1 mV ±(1.5%+15 digits) ±7.4985 mV mV
4 V 1 mV ±(1.0%+4 digits) ±0.04399 V V
40 V 10 mV ±(1.0%+4 digits) ±0.4399 V V
400 V 100 mV ±(1.5%+4 digits) ±6.3985 V V
600 V 1 V ±(2.0%+4 digits) ±15.98 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 µA 0.1 µA ±(1.0%+2 digits) ±4.199 µA µA
4000 µA 1 µA ±(1.0%+2 digits) ±41.99 µA µA
400 mA 100 µA ±(1.2%+2 digits) ±4.9988 mA mA
10 A 10 mA ±(2.0%+5 digits) ±0.2498 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 µA 0.1 µA ±(1.2%+2 digits) ±4.9988 µA µA
4000 µA 1 µA ±(1.2%+2 digits) ±49.988 µA µA
400 mA 100 µA ±(1.5%+2 digits) ±6.1985 mA mA
10 A 10 mA ±(2.0%+5 digits) ±0.2498 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
5 Hz 0.001 Hz ±(1.2%+3 digits) ±0.062988 Hz Hz
50 Hz 0.01 Hz ±(1.2%+3 digits) ±0.62988 Hz Hz
500 Hz 0.1 Hz ±(1.2%+3 digits) ±6.2988 Hz Hz
5 kHz 1 Hz ±(1.2%+3 digits) ±0.062988 kHz kHz
50 kHz 10 Hz ±(1.2%+3 digits) ±0.62988 kHz kHz
500 kHz 100 Hz ±(1.2%+3 digits) ±6.2988 kHz kHz
10 MHz 1 kHz ±(1.5%+4 digits) ±0.153985 MHz MHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 Ω 0.1 Ω ±(1.5%+4 digits) ±6.3985 Ω Ω
4 kΩ 1 Ω ±(1.5%+2 digits) ±0.061985 kΩ
40 kΩ 10 Ω ±(1.5%+2 digits) ±0.61985 kΩ
400 kΩ 100 Ω ±(1.5%+2 digits) ±6.1985 kΩ
4 MΩ 10 kΩ ±(2.0%+2 digits) ±0.0998 MΩ
40 MΩ 1 MΩ ±(2.5%+2 digits) ±2.975 MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
50 nF 10 pF ±(5.0%+7 digits) ±2.5695 nF nF
500 nF 0.1 nF ±(3.0%+5 digits) ±15.497 nF nF
5 µF 1 nF ±(4.0%+5 digits) ±0.20496 µF µF
50 µF 10 nF ±(4.0%+5 digits) ±2.0496 µF µF
100 µF 0.1 µF ±(4.0%+5 digits) ±4.496 µF µF

Specifications:


FunctionMax. RangeResolution Accuracy
Light (calibrated to standard incandescent lamp at 2856K color temp.)4,000lux0.1lux±5%+10d
40,000lux
Sound (electric condenser microphone)
35...100dB
(30Hz-10kHz)
0.1dB±5dB at 94dB, 1kHz sine
Humidity33...99%RH1%RH±3%+5d
TemperatureIndoor: 0...50°C 0.1°C±3%+5d
K probe: 1300°C/2372°F1°C/1°F±3%+5d/±3%+9d
NCV50-1000V

Voltage DC600V0.1mV±1.0%+4d
Voltage AC (50...400Hz)
600V0.1mV±1.0%+4d
Current DC10A 0.1μA±1.0%+2d
Current AC (50...400Hz)10A 0.1μA±1.2%+2d
Resistance40MΩ0.1Ω±1.5%+2d
Capacitance 100μF10pF±3.0%+5d
Frequency 10MHz1kHz±1.2%+3d
Duty Cycle99.9%0.1%±1.2%
Diode checkOpen voltage 2.8V DC, Test current 1mA
Continuity Test Threshold 30Ω

Size: 4.7×2.4×1.6in/121×60.6×40mm
Weight: 9.8oz/280g

General accessories:

1. Red and Black Test Leads

2. K type temperature probe




3. 9V battery

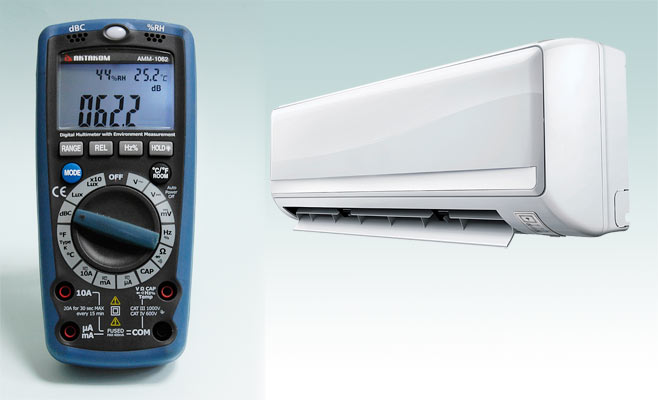

Measuring Sound Level

  1. Set the function switch to the green "dB" position.
  2. Remove the meter and face the microphone to sound source in a horizontal position.
  3. The C-weighting curve is nearly uniform over the frequency range from 30 to 10,000Hz, thus giving an indication of overall Sound level.
  4. The Fast response is suitable to measure shout bursts and peak values from sound source.
  5. The sound level will be displayed.

    Note:
    Strong wind (over 10m/s) striking the microphone can cause misreading for measurement in windy locations, a windscreen should be used in front of microphone.

Measuring Sound Level

Measuring Humidity

    Humidity Measurement for indoor:
  1. Set the function switch to the ON position.
  2. Remove the meter place to the room.
  3. Read the %RH in the display for about two hours.

Measuring Humidity

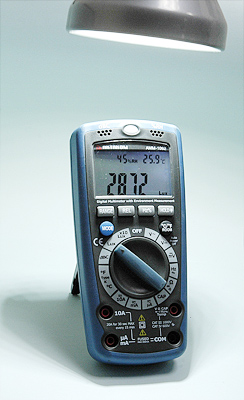

Measuring Light

  1. Set the function switch to the green "lux" scale and set the range to desired ("lux" or "x10 lux") range.
  2. Remove the meter and face the photo detector to light source in a horizontal position.
  3. Read the illuminance nominal from the LCD display.
  4. Over-range: If the instrument only display one "1" in the M.S.D. the input signal is too strong, and a higher range should be selected.
  5. When the measurement is completed. Replace the photo detector from the light source.
  6. Spectral sensitivity characteristic: To the detector, the applied photo diode with filters makes the spectral sensitivity characteristic almost meet C.I.E. (International Commission on Illumination) photopia curve V (λ) as the following chart described.

  7. Recommended Illumination:

    Locations Lux
    Office
    Conference, Reception room.
    Clerical work
    Typewriting

    200~750
    700~1,500
    1000~2,000
    Factory
    Packing, Entrance passage
    Assembling line
    Inspection work
    Electronic parts assembly line

    150~300
    300~750
    750~1,500
    1,500~3,000
    Hotel
    Public, Cloakroom
    Reception, Cashier

    100~200
    200~1,000
    Store
    Indoors Stairs, Corridor
    Show window, Packing table
    Forefront of show window

    150~200
    750~1,500
    1,500~3,000
    Hospital
    Sickroom, Warehouse
    Medical Examination room
    Operating room, Emergency room

    100~200
    300~750
    750~1,500
    School
    Auditorium, Indoor Gymnasium
    Class room
    Laboratory, Library, Drafting room

    100~300
    200~750
    500~1,500

Measuring Light

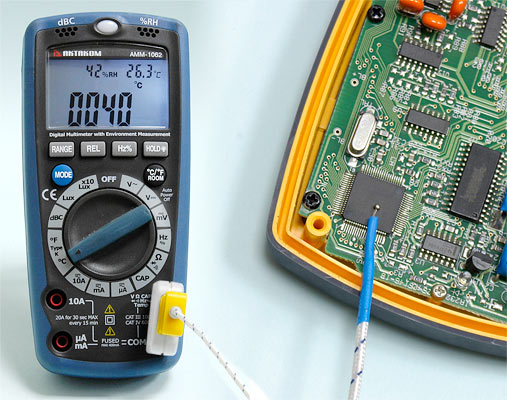

Measuring Temperature

    Temperature Measurement for Outdoor:
  1. Set the function switch to the green "0.1°C" position or "1°C" position.
  2. Then the display will show the environment temperature reading value °C directly.
  3. Insert the black plug of temperature probe the COM jack and red plug to the "V/Hz%/Ω/Cap/°C" jack.
  4. Touch the end of the temperature sensor to the area or surface of the object to be measured. The display will show the temperature reading value °C directly.

Measuring Temperature

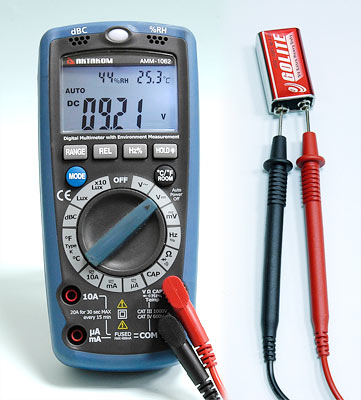

Measuring DC Voltage

  1. Insert the black test lead banana to the COM jack and red test lead banana to the "V/Hz%/Ω/Cap/°C" jack
  2. Set the function switch to the green at DCV ranges to be used and connect test leads across the source or load under measurement
  3. Set the function switch at DCmV ranges to be used, connect test leads across the source or load under measurement
  4. Read LCD display. The polarity of red connection will be indicated when making a DC measurement
  5. Press the Hz% button to indicate "Hz"
  6. Read the frequency in the display
  7. Press the Hz% button again to indicate "%"
  8. Read the % of duty cycle in the display.

Measuring DC Voltage

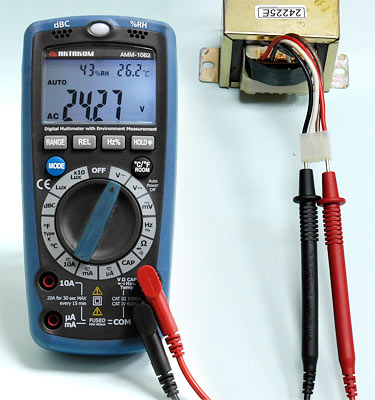

Measuring AC Voltage

  1. Insert the black test lead banana to the COM jack and red test lead banana to the "V/Hz%/Ω/Cap/°C" jack
  2. Set the function switch to the green at AC ranges to be used and connect test leads across the source or load under measurement
  3. Read LCD display. The polarity of red connection will be indicated when making a AC measurement
  4. Press the Hz% button to indicate "Hz"
  5. Read the frequency in the display
  6. Press the Hz% button again to indicate "%"
  7. Read the % of duty cycle in the display.

Measuring AC Voltage

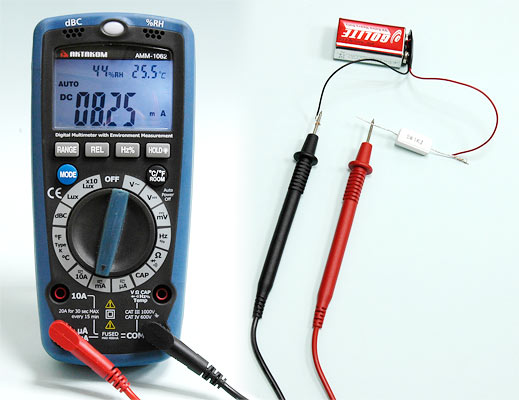

Measuring DC Current

  1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the "μA/mA" or "10A" jack
  2. For current measurements up to 4000μA DC, set the function switch to the μA position and insert the red test lead banana plug into the μA/mA jack
  3. For current measurements up to 400mA DC, set the function switch to the mA position and insert the red test lead banana plug into the μA/mA jack
  4. For current measurements up to 10A DC, set the function switch to the yellow 10A position and insert the red test lead banana plug into the 10A jack
  5. Press the MODE button to indicate "DC" on the display
  6. Remove power from the circuit under test, then open up the circuit at the point where you wish to measure current
  7. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit
  8. Apply power to the circuit
  9. Read the current in the display.

Measuring DC Current

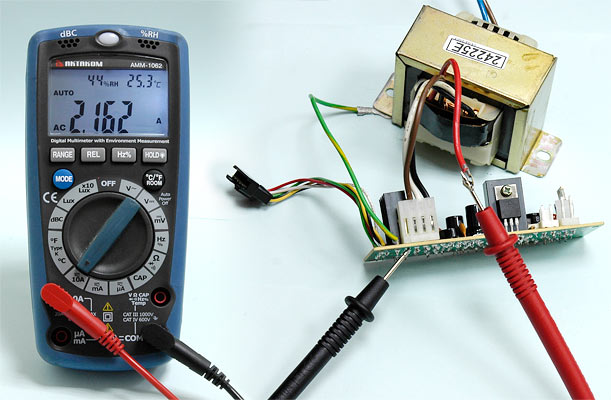

Measuring AC Current

  1. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the "μA/mA" or "10A" jack
  2. For current measurements up to 4000uA AC, set the function switch to the uA position and insert the red test lead banana plug into the μA/mA jack
  3. For current measurements up to 400mA AC, set the function switch to the mA position and insert the red test lead banana plug into the μA/mA jack
  4. For current measurements up to 10A AC, set the function switch to the yellow 10A position and insert the red test lead banana plug into the 10A jack
  5. Press the MODE button to indicate "AC" on the display
  6. Remove power from the circuit under test then open up the circuit at the point where you wish to measure current
  7. Touch the black test probe tip to the neutral side of the circuit. Touch the red test probe tip to the "hot" side of the circuit
  8. Apply power to the circuit
  9. Read the current in the display
  10. Press and hold the Hz% button to indicate "Hz"
  11. Read the frequency in the display
  12. Momentarily press the Hz% button again to indicate "%"
  13. Read the % duty cycle in the display
  14. Press and hold the Hz% button to return to current measurement.

Measuring AC Current

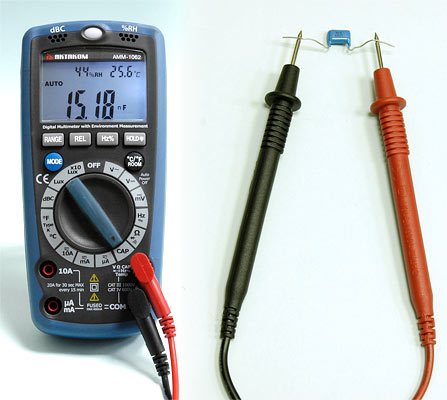

Measuring Capacitance

  1. Set the function switch to the green CAP position
  2. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the “V/Hz%/Ω/Cap/°C” jack (If value is not zero in the display press REL button to zero)
  3. Touch the test probe tips across the part under test
  4. Read the capacitance value in the display
  5. The display will indicate the proper decimal point and value.

Measuring Capacitance

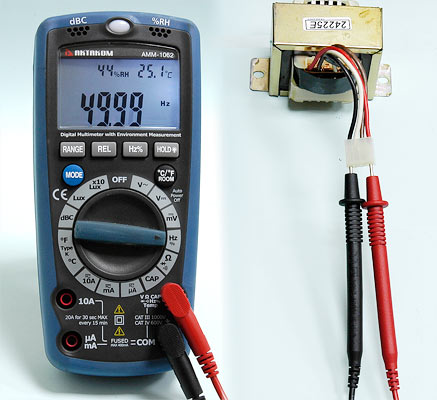

Measuring Frequency

  1. Set the function switch to the Hz position.
  2. Insert the black test lead banana plug into the negative (COM) jack
  3. Insert the red test lead banana plug into the V/Hz%/Ω/Cap/°C jack.
  4. Touch the test probe tips to the circuit under test.
  5. Read the frequency in the display.
  6. The digital reading will indicate the proper decimal point, symbols (Hz, kHz, MHz) and value.

Measuring Frequence

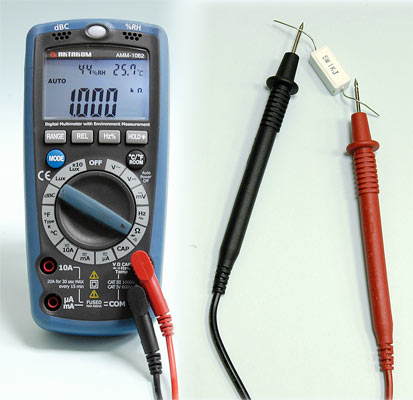

Measuring Resistance

  1. Set the function switch to the green Ω   position.
  2. Insert the black test lead banana plug into the negative COM jack.
  3. Insert the red test lead banana plug into the V/Hz%/Ω/Cap/°C jack.
  4. Indicate "OL" "MΩ" on the display.
  5. Touch the test probe tips across the circuit or part under test. It is best to disconnect one side of the part under test so the rest of the circuit will not interfere with the resistance reading.
  6. Read the resistance in the display.

Measuring Resistance

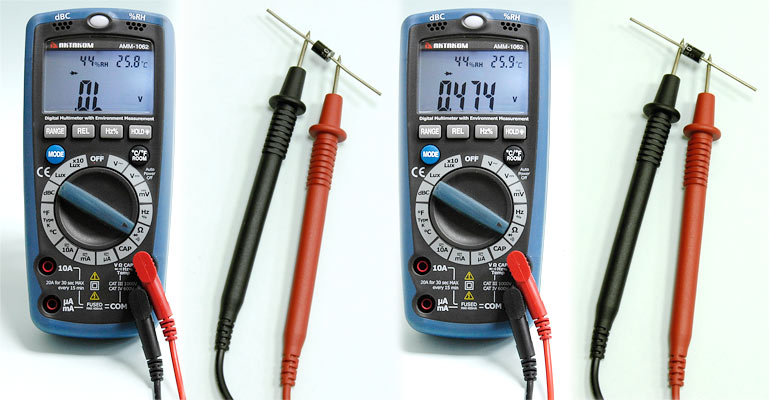

Diode test

  1. Set the function switch to the green Ω   position.
  2. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the "V/Hz%/Ω/Cap/°C" jack.
  3. Press the MODE button to indicate "" and "V" on the display.
  4. Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate "OL". Shorted devices will indicate near 0V and an open device will indicate "OL" in both polarities.

Measuring Diode

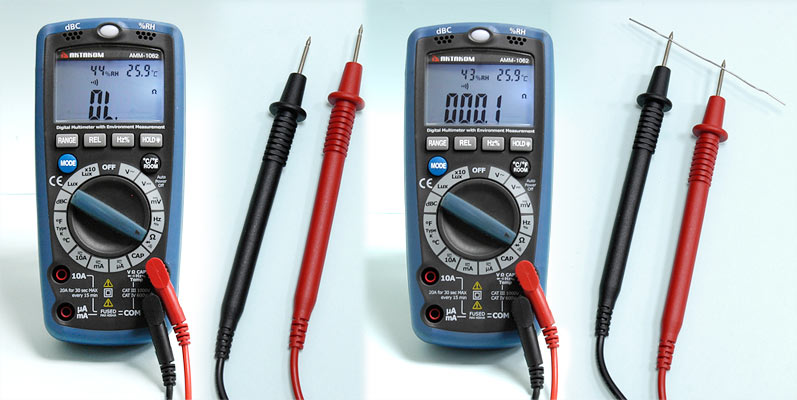

Audible Continuity Test

  1. Set the function switch to the green Ω   position.
  2. Insert the black lead banana plug into the negative COM jack.
  3. Insert the red test lead banana plug into the "V/Hz%/Ω/Cap/°C" jack.
  4. Press the MODE button to indicate "" and "Ω" on the display
  5. Touch the test probe tips to the circuit or wire you wish to check.
  6. If the resistance is less than approximately 50Ω, the audible signal will sound. If the circuit is open, the display will indicate "OL".

Audible Continuity Test

Frequently Asked Questions

  • Does AKTAKOM AMM-1062 multimeter have auto power off function?
  • How can I deactivate Auto Power Off function of AKTAKOM AMM-1062 multimeter?

  • Does AKTAKOM AMM-1062 multimeter have auto power off function?

    Yes, it does. There is Auto Power Off function in AMM-1062: the device power automatically goes off if you do not use the device within 15 minutes.


    Up

    How can I deactivate Auto Power Off function of AKTAKOM AMM-1062 multimeter?

    Auto Power Off function can’t be disabled in AMM-1062 multimeter.


    Up

    AKTAKOM AMM-1062 es un multímetro digital 6 en 1 con mediciones medioambientales. Ha sido diseńado para combinar las funciones de medidor de nivel de sonido, medidor de nivel de luz o iluminación, medida de la humedad, temperatura y un detector de voltaje AC sin contacto. Es un equipo ideal y de multifunción ambiental además de ser un DMM con decenas de aplicaciones prácticas para el uso profesional y doméstico.

    Características:

    • La función de nivel de sonido se puede utilizar para medir el ruido en las fábricas, escuelas, oficinas, hogar, etc, control de la acústica de estudios, auditorios e instalaciones de alta fidelidad.
    • La función de luz se utiliza para medir la luminosidad o luminancia en el campo. Esta totalmente corregido por el coseno de la incidencia angular de la luz. El componente sensible a la luz utilizado en el medidor es un diodo de silicio muy estable y de larga vida.
    • Para la medición de la humedad y la temperatura se ha utilizado un sensor de semiconductor y termopar tipo K.
    • El DMM incluye medición de ACV, DCV, AV = CA, DCA, resistencia, capacitancia, frecuencia, ciclo de trabajo, testeo de diodos, continuidad y el detector de voltaje sin contacto de AC.

    Back to the section


    Please give us your feedback to help us improve our website

    * - required fields

    AKTAKOM - the Best in Test Award Winner!
    Site map | Privacy statement | Terms of Use & Store Policies | How to Buy | Shipping | Payment | © T&M Atlantic, Inc., 2010-2016
    Please click here to ask your question.

    If you've asked your question and is waiting for reply, click here.
    Please note: you must log in to ask your questions.
