AMM-1032 Digital Multimeter

AKTAKOM AMM-1032 Digital Multimeter
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download
True RMS Bar graph indicator

Retail price :$69.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

BuyAdd to cart

AKTAKOM AMM-1032are compact meters with double molded plastic housing and over sized high contrast 6000 counts LCD display. They're all CATIII rated for 600V

Safety Conformance

  • EN61010-1 CATIII 600V, CATII 1000V
  • Double molded plastic housing
  • Full ranges protection

Features:

  1. Digital display counts: 6000
  2. True RMSmeasurements
  3. Bar graph indication and frequency measurement path / segments: 61-segments
  4. Safety design
  5. Data Hold
  6. MAX/MIN recording mode
  7. Auto Ranging
  8. Adaptor ACA function
  9. Non-Contact ACV detection

DC Voltage (DCV)1000 V
DCV Accuracy(0.5%+2)
DCV Resolution0.1 mV
AC Voltage (ACV)1000 V
ACV Accuracy(1.5%+10)
ACV Resolution1 mV
DC Current (DCA)10 A
DCA Accuracy(2.5%+5)
DCA Resolution1 mA
AC Current (ACA)10 A
ACA Accuracy(3.0%+5)
ACA Resolution1 mA
Frequency0.001 Hz...10 MHz
Duty Cycle0.1%...99.9%
Resistance0.1 Ω...60 MΩ
Capacitance1 pF...4000 F
Temperature-20 C...+760 C / -4 F...+1400 F
Diode test+
Continuity check+
True RMS+
Autorange+
Data hold+
Min/Max measurement+
Special featuresNon-contact voltage detector
DisplayLCD, 6000 counts
Bar graph indicator+
Power supply9 V battery
Dimensions5.9 x 2.7 x 1.9 in / 150 x 70 x 48 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
600 mV 0.1 mV (0.5%+2 digits) 3.1995 mV mV
6 V 0.001 V (1.2%+2 digits) 0.073988 V V
60 V 0.01 V (1.2%+2 digits) 0.73988 V V
600 V 0.1 V (1.2%+2 digits) 7.3988 V V
1000 V 1 V (1.5%+2 digits) 16.985 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6 V 1 mV (1.5%+10 digits) 0.099985 V V
60 V 0.01 V (1.5%+10 digits) 0.99985 V V
600 V 0.1 V (1.5%+10 digits) 9.9985 V V
1000 V 1 V (2.0%+10 digits) 29.98 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6 A 0.001 A (2.5%+5 digits) 0.154975 A A
10 A 0.01 A (2.5%+5 digits) 0.29975 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
6 A 0.001 A (3.0%+5 digits) 0.18497 A A
10 A 0.01 A (3.0%+5 digits) 0.3497 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
9.999 Hz 0.001 Hz (1.5%+5 digits) 0.15497 Hz Hz
99.99 Hz 0.01 Hz (1.5%+5 digits) 1.5497 Hz Hz
999.9 Hz 0.1 Hz (1.2%+3 digits) 12.2976 Hz Hz
9.999 kHz 0.001 kHz (1.2%+3 digits) 0.122976 kHz kHz
99.99 kHz 0.01 kHz (1.2%+3 digits) 1.22976 kHz kHz
999.9 kHz 0.1 kHz (1.2%+3 digits) 12.2976 kHz kHz
9.999 MHz 1 kHz (1.5%+4 digits) 0.15397 MHz MHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
600 Ω 0.1 Ω (1.2%+4 digits) 7.5988 Ω Ω
6 kΩ 1 Ω (1.0%+2 digits) 0.06199 kΩ
60 kΩ 10 Ω (1.2%+2 digits) 0.73988 kΩ
600 kΩ 100 Ω (1.2%+2 digits) 7.3988 kΩ
6 MΩ 1 kΩ (2.0%+2 digits) 0.12198 MΩ
60 MΩ 10 kΩ (5.0%+10 digits) 3.0995 MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
40 nF 0.01 nF (5.0%+50 digits) 2.4995 nF nF
400 nF 0.1 nF (3.0%+5 digits) 12.497 nF nF
4 F 0.001 F (3.0%+5 digits) 0.12497 F F
40 F 0.01 F (3.0%+5 digits) 1.2497 F F
400 F 0.1 F (5.0%+5 digits) 20.495 F F
4000 F 1 F (5.0%+5 digits) 204.95 F F

Specifications

Function Range Resolution Accuracy
DC Voltage 600 mV 0.1mV (0.5% + 2 digits)
6 V 0.001V (1,2% + 2 digits)
60 V 0.01V
600 V 0.1V
1000 V 1V (1.5% + 2 digits)
AC Voltage (50/60Hz, TRMS) 6 V 1mV (1,5% + 10 digits)
60 V 0.01V (1,5% + 10 digits)
600 V 0.1V
1000 V 1V (2,0% + 10 digits)
DC Current 6 A
0.001A
(2.5% + 5 digits)
10 A 0.01A
AC Current (50/60Hz, TRMS) 6 A 0.001A
(3,0% + 5 digits)
10 A 0.01A
Resistance 600 Ω 0.1Ω (1.2% + 4 digits)
6 kΩ (1.0% + 2 digits)
60 kΩ 10Ω (1.2% + 2 digits)
600 kΩ 100Ω
6 MΩ 1kΩ (2.0% + 2 digits)
60 MΩ 10kΩ (5.0% + 10 digits)
Continuity buzzer: <100Ω
Capacitance
40 nF
0.01nF
(5.0% + 50 digits)
400 nF
0.1nF
(3.0% + 5 digits)
4 uF 0.001uF
40 uF
0.01uF
400 uF
0.1uF
(5.0% + 5 digits)
4000 uF 1uF
Frequency
9.999 Hz 0.001Hz (1.5% + 5 digits)
99.99 Hz
0.01Hz
999.9 Hz
0.1Hz (1.2% + 3 digits)
9.999 kHz 0.001kHz
99.99 kHz
0.01kHz
999.9 kHz
0.1kHz
9.999 MHz 1kHz (1.5% + 4 digits)
Temperature (thermocouple)
-20C ... 400C 0.1C
1C
(3,0% + 6 digits)
400C ... 760C
-4F ... 1400F 1F
(3,0% + 9 digits)

General specifications

Display: 6000 counts, analog bar graph.
Overvoltage category: CATII 1000V / CATIII 600V.
Non-contact Voltage Detector: LED / Vibrating
Insulation:
Class2, Double insulation.
Polarity: Automatic, (-) negative polarity indication.
Overrange: OL mark indication.
Low battery indication: The BAT is displayed when the battery voltage drops below the operating level.
Measurement rate: 2 times per second, nominal.
Operating environment: 0C to 50C (32F to 122F) at < 70 % relative humidity.
Storage temperature: -20C to 60C (-4F to 140F) at < 80 % relative humidity.
Power: One 9V battery, NEDA 1604, IEC 6F22.
Dimensions (HxWxD): 5.9x2.7x1.9in / 150x70x48mm
Weight: Approx.: 255g

General Accessories

1. Test leads

2. Type K temperature probe


3. 9V battery (design may vary)

4. Gift box with carrying case

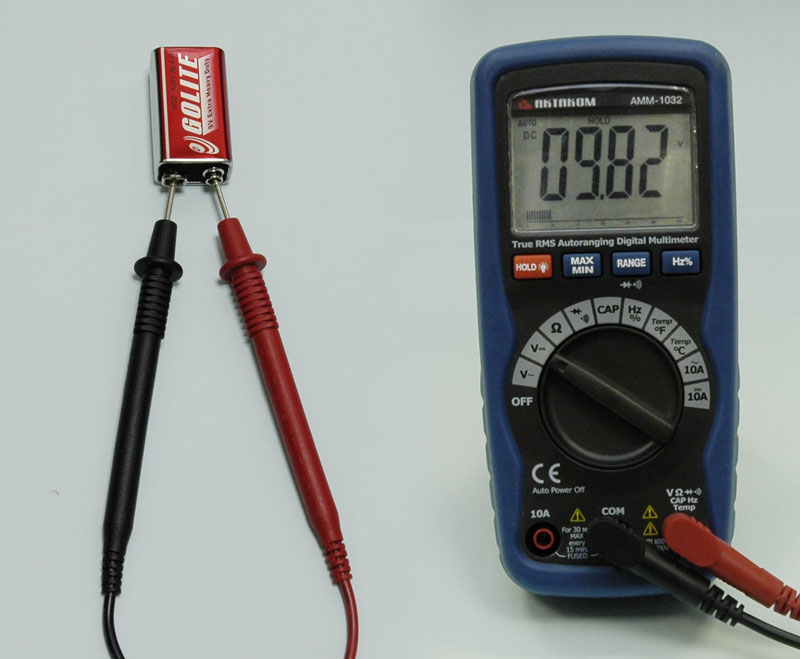

DC voltage measurement

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF. Large voltage surges may occur that can damage the meter.

  1. Set the function switch to the V DC position ("mV" will appear in the display)
  2. Insert the black test lead banana plug into the negative (COM) jack and the red test lead banana plug into the positive (V) jack
  3. Be sure to observe the correct polarity (red lead to positive, black lead to negative)
  4. Read the voltage in the display. The display will indicate the proper decimal point and value. If the polarity is reversed, the display will show (-) minus before the value.

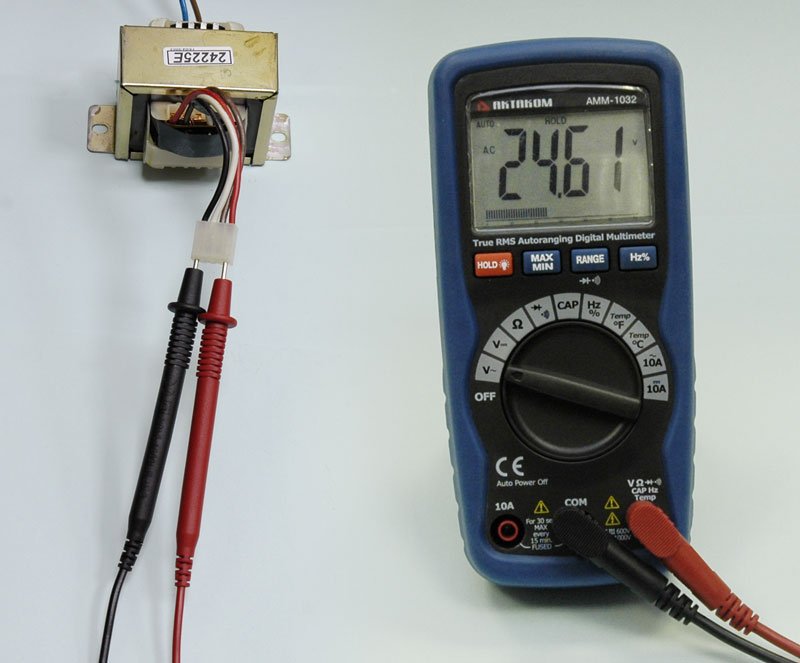

AC voltage measurement

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As a result, the reading may show 0 Volts when the outlet actually has voltage on it. Make sure the probe tips are touching the metal contacts inside the outlet before assuming that no voltage is present.
CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF. Large voltage surges may occur that can damage the meter.

  1. Set the function switch to the V AC position.
  2. Insert the black test lead banana plug into the negative (COM) jack and the red test lead banana plug into the positive (V) jack.
  3. Touch the test probe tips to the circuit under test.
  4. Read the voltage in the display. The display will indicate the proper decimal point, value and symbol (AC, V, etc.).

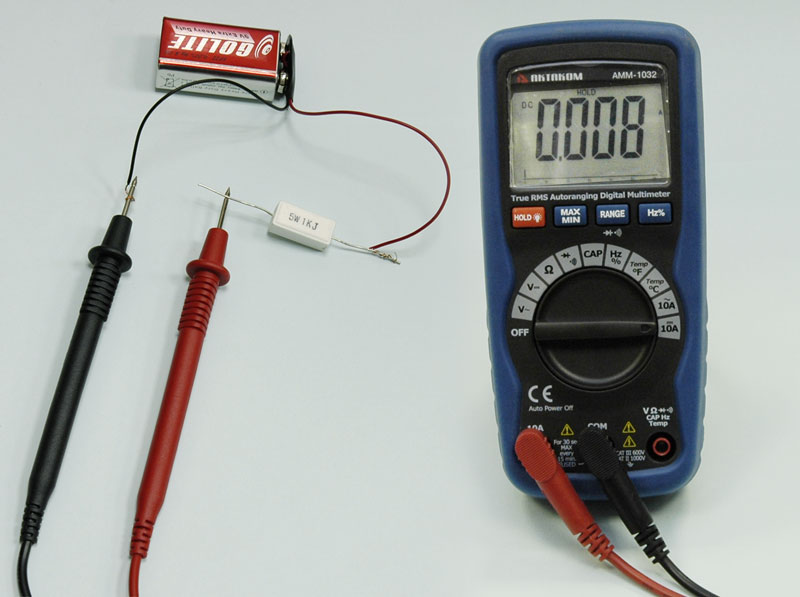

DC current measurement

CAUTION: Do not make current measurements on the 10A scale for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads.

  1. Insert the black test lead banana plug into the negative (COM) jack.
  2. For DC current measurements, set the function switch to the DC 10A position and insert the red test lead banana plug into the 10A jack.
  3. Remove power from the circuit under test, then open up the circuit at the point where you wish to measure current.
  4. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit.
  5. Apply power to the circuit.
  6. Read the current in the display. The display will indicate the proper decimal point, value and symbol.

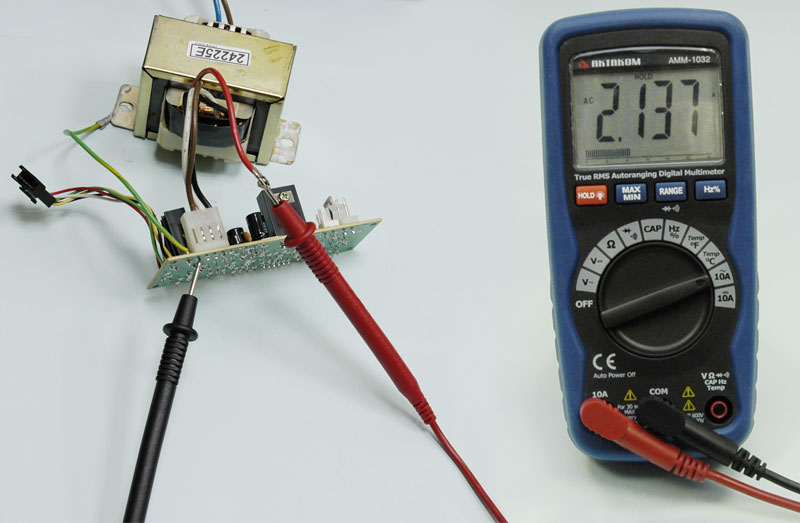

AC current measurement

WARNING: To avoid electric shock, do not measure AC current on any circuit whose voltage exceeds 250V AC.
CAUTION: Do not make current measurements on the 10A scale for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads.

  1. Insert the black test lead banana plug into the negative (COM) jack
  2. For AC current measurements, set the function switch to the AC 10A position and insert the red test lead banana plug into the 10A jack
  3. Remove power from the circuit under test, then open up the circuit at the point where you wish to measure current
  4. Touch the black test probe tip to the negative side of the circuit. And touch the red test probe tip to the positive side of the circuit
  5. Apply power to the circuit
  6. Read the current in the display. The display will indicate the proper decimal point, value and symbol.

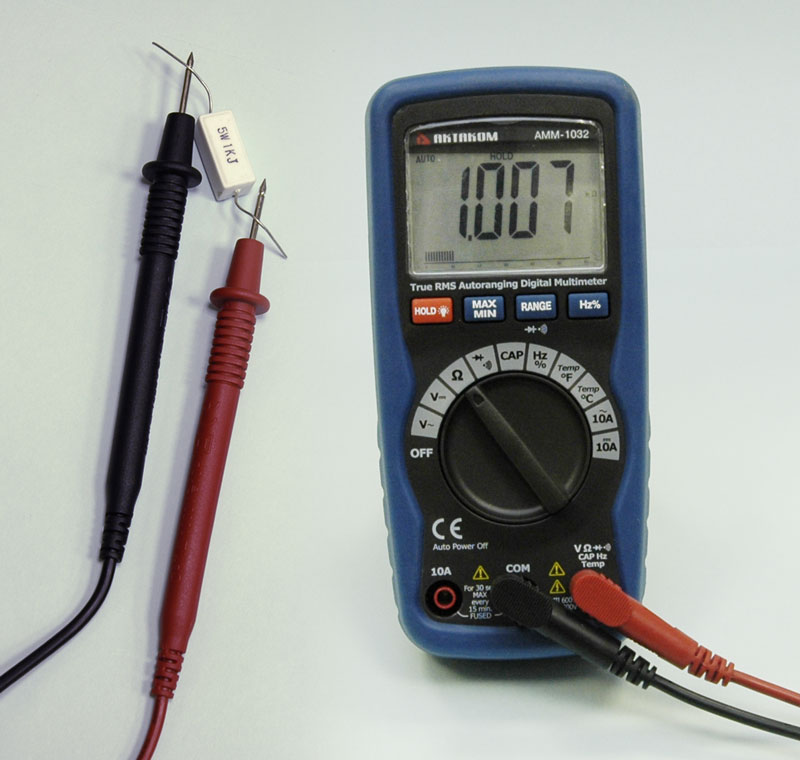

Resistance measurement

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. Remove the batteries and unplug the line cords.

  1. Set the function switch to the Ω position
  2. Insert the black test lead banana plug into the negative (COM) jack and the red test lead banana plug into the positive Ω jack
  3. Touch the test probe tips across the circuit or part under test. It Is best to disconnect one side of the part under test so the rest of the circuit will not interfere with the resistance reading
  4. Read the resistance in the display. The display will indicate the proper decimal point, value.

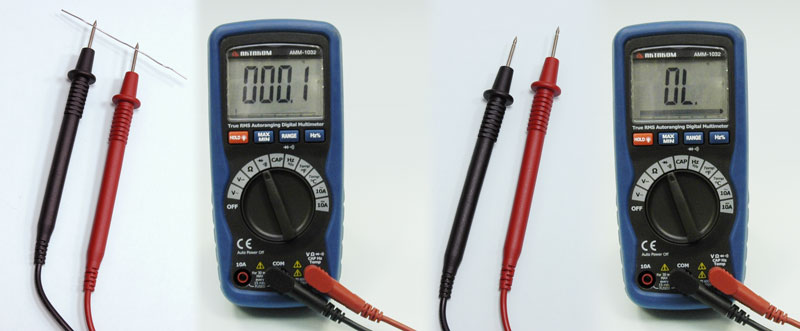

Continuity check

WARNING: To avoid electric shock, never measure continuity on circuits or wires that have voltage on them.

  1. Set the function switch to the position.
  2. Insert the black lead banana plug into the negative (-) jack (COM) and the red test lead banana plug into the positive (+) jack (Ω).
  3. Press the button until the symbol appears in the display.
  4. Touch the test probe tips to the circuit or wire you wish to check.
  5. If the resistance is less than approximately 100Ω, the audible signal will sound. The display will also show the actual resistance.

Diode test

WARNING: To avoid electric shock, do not test any diode that has voltage on it.

  1. Set the function switch to position.
  2. Press the button until the symbol appears in the display.
  3. Insert the black test lead banana plug into the negative (-) jack (COM) and the red test lead banana plug into the positive (+) jack (Ω).
  4. Touch the test probe tips to the diode or semiconductor junction you wish to test. Note the meter reading
  5. Reverse the probe polarity by switching probe position. Note this reading.
  6. The diode or junction can be evaluated as follows:
    A. If one reading shows a value and the other reading shows OL, the diode is good.
    B. If both readings show OL, the device is open.
    C. If both readings are very small or 0, the device is shorted.

    NOTE: The value indicated in the display during the diode check is the forward voltage.

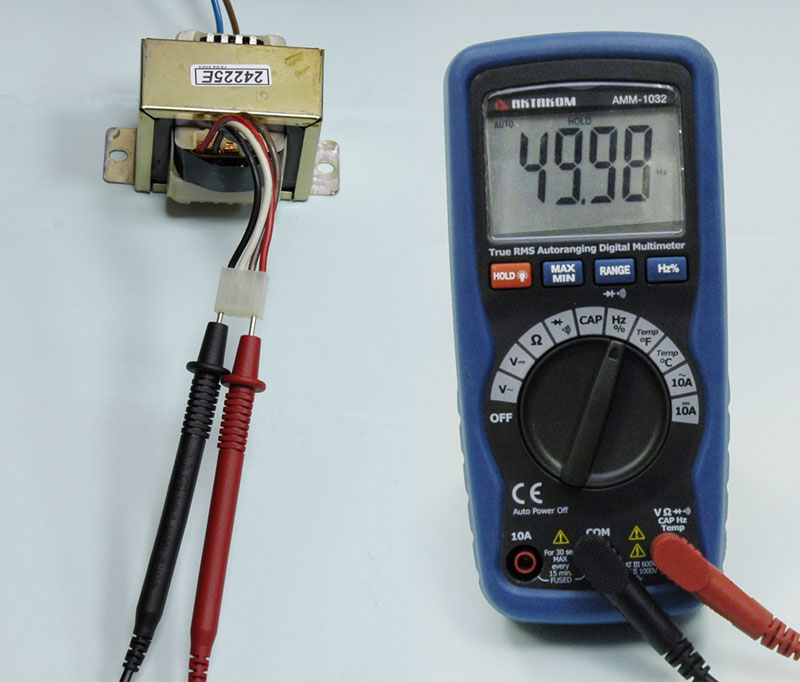

Frequency measurement

  1. Set the function switch to the FREQ position.
  2. Insert the black test lead banana plug into the negative (-) jack (COM) and the red test lead banana plug into the positive (+) jack (F).
  3. Touch the test probe tips to the circuit under test.
  4. Read the frequency in the display. The digital reading will indicate the proper decimal point, symbols (Hz, kHz) and value.

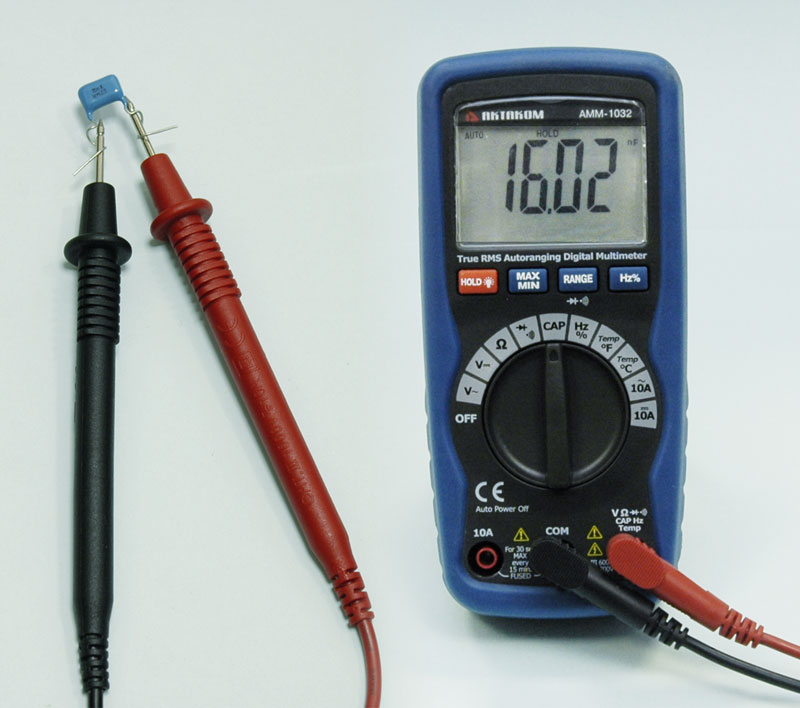

Capacitance measurement

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any capacitance measurements. Remove the batteries and unplug the line cords.

  1. Set the function switch to the CAP position. (“nF” and a small value will appear in the display).
  2. Insert the black test lead banana plug into the negative (-) jack (COM) and the red test lead banana plug into the positive (+) jack (CAP).

Touch the test leads to the capacitor to be tested. The display will indicate the proper decimal point, value and symbol.

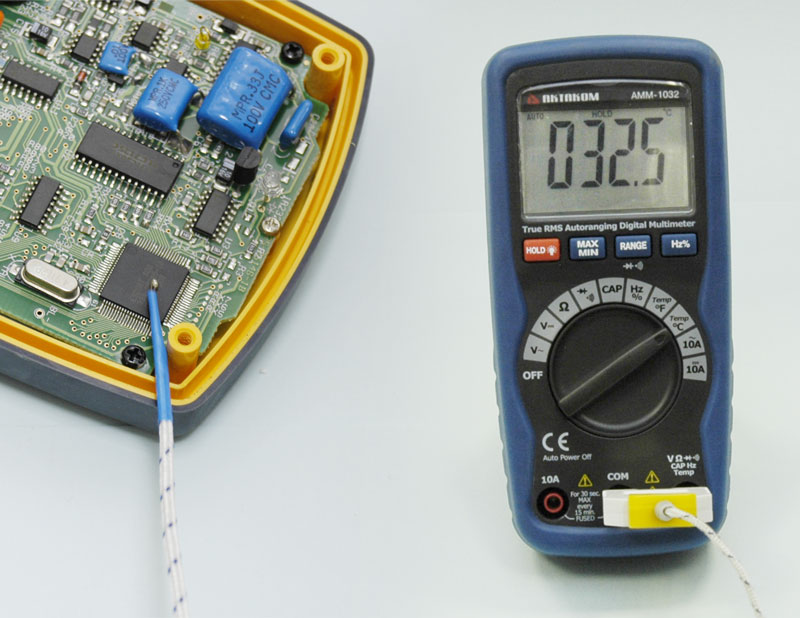

Temperature measurement

WARNING: To avoid electric shock, disconnect both test probes from any source of voltage before making a temperature measurement.

  1. If you wish to measure temperature in °F, set the function switch to the F range. If you wish to measure temperature in C, set the function switch to the C range.
  2. Insert the type K thermocouple probe black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive Temp jack.
  3. Touch the Temperature Probe head to the part whose temperature you wish to measure. Keep the probe touching the part under test until the reading stabilizes (about 30 seconds).
  4. Read the temperature in the display. The digital reading will indicate the proper decimal point and value.

WARNING: To avoid electric shock, be sure the thermocouple has been removed before changing to another measurement function.

Frequently Asked Questions

  • Does AKTAKOM AMM-1032 multimeter have auto power off function?
  • How can I deactivate Auto Power Off function of AKTAKOM AMM-1032 multimeter?

  • Does AKTAKOM AMM-1032 multimeter have auto power off function?

    Yes, it does. There is Auto Power Off function in AMM-1032: the device power automatically goes off if you do not use the device within 15 minutes. Press any button to start the operation again.


    Up

    How can I deactivate Auto Power Off function of AKTAKOM AMM-1032 multimeter?

    Auto Power Off function can’t be disabled in AMM-1032 multimeter.


    Up

    AKTAKOM AAM-1032 es muy compacto con una carcasa doble de plstico moldeado y unmonitor LCD sobredimensionadode alto contraste y 6000 cuentas. Cumple con todas la norma EN6101-1CATIIIclasificada para 600V y la CATII para 1000V. Proteccin total en todos los rangos.

    Caractersticas:

    • Monitordigital con 6000 cuentas.
    • Con medicin RMS verdadera.
    • Grfico de barras anlogo/segmentos: 61-segmentos.
    • Diseo seguro.
    • Conservacin de datos.
    • Modo de grabacin MAX/MIN.
    • Seleccin de rangoautomtico.
    • Adaptador de funcin ACA.
    • Deteccin de falta de contacto ACV.
