AM-1083 Digital Multimeter

AKTAKOM AM-1083 Digital Multimeter
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download

Aktakom AM-1083 multimeters are designed to measure DC and AC (40-400Hz) power (up to 20A) and voltage, resistance, capacitance, diode and continuity test

Retail price :$39.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock now

BuyAdd to cart

AM-1083 is a stable and battery-driven 3 1/2 digital multimeter with high reliability. It adopts LCD screen with character height of 28mm; with functions including unit sign/backlight and overload protection, it is easy to use. This series of device can be used to measure DCV, ACV, DC, AC, resistance, capacitance, inductance, diode, triode, open circuit, temperature and frequency, as well as hold peak value. As an instrument with excellent performance it adopts double integral A/D converter as its core.

Features:

  • Display mode: LCD; Max display: 1999 (3 1/2) digits automatic polarity display.
  • Measurement method: double integral A/D conversion.
  • Sampling rate: about 3 time per second
  • Over-range display: the highest digit displays "OL" or "-OL"
  • Low voltage display
  • Power supply: one 9V battery (6F22 or equivalent model)
  • Dimension: 189x97x35mm / 7.4x3.8x1.4in
  • Weight: about 400g / 14.1oz (including 9V battery)

DC Voltage (DCV)1000 V
DCV Accuracy(01.5%+3)
DCV Resolution100 V
AC Voltage (ACV)750 V
ACV Accuracy(0.8%+5)
ACV Resolution100 V
DC Current (DCA)20 A
DCA Accuracy(0.8%+3)
DCA Resolution1 A
AC Current (ACA)20 A
ACA Accuracy(1%+5)
ACA Resolution1 A
Frequency10 MHz
Resistance2000 MΩ
Capacitance200 F
Temperature-20...1000 C
Temperature resolution1 C
Temperature sensor typeType K thermocouple
Diode test+
Continuity check+
Data hold+
Min/Max measurement+
Special featuresAuto power off, Protection against overload, misconnection and electric shock, Low voltage display
DisplayLCD, 3 digit, 1999 counts
Power supply9 V battery
Dimensions7.4 x 3.8 x 1.4 in / 189 x 97 x 35mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
200 mV 100 V (0.5%+3 digits) 1.2995 mV mV
2 V 1 mV (0.5%+3 digits) 0.012995 V V
20 V 10 mV (0.5%+3 digits) 0.12995 V V
200 V 100 mV (0.5%+3 digits) 1.2995 V V
1000 V 1 V (1%+5 digits) 14.99 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
200 mV 100 V (1.2%+3 digits) 2.6988 mV mV
2 V 1 mV (0.8%+5 digits) 0.020992 V V
20 V 10 mV (0.8%+5 digits) 0.20992 V V
200 V 100 mV (0.8%+5 digits) 2.0992 V V
750 V 1 V (1%+5 digits) 12.49 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
2 mA 1 A (0.8%+3 digits) 0.018992 mA mA
20 mA 10 A (0.8%+3 digits) 0.18992 mA mA
200 mA 100 A (1.2%+4 digits) 2.7988 mA mA
20 A 10 mA (2%+5 digits) 0.4498 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
2 mA 1 A (1%+5 digits) 0.02499 mA mA
20 mA 10 A (1%+5 digits) 0.2499 mA mA
200 mA 100 A (2%+5 digits) 4.498 mA mA
20 A 10 mA (3%+10 digits) 0.6997 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
2 kHz 1 Hz (0.5%+4 digits) 0.013995 kHz kHz
20 kHz 10 Hz (0.5%+4 digits) 0.13995 kHz kHz
200 kHz 100 Hz (0.5%+4 digits) 1.3995 kHz kHz
2 MHz 1 kHz (0.5%+4 digits) 0.013995 MHz MHz
10 MHz 10 kHz (0.5%+4 digits) 0.08995 MHz MHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
200 Ω 0.1 Ω (0.8%+5 digits) 2.0992 Ω
2 kΩ 1 Ω (0.8%+3 digits) 0.018992 kΩ kΩ
20 kΩ 10 Ω (0.8%+3 digits) 0.18992 kΩ kΩ
200 kΩ 100 Ω (0.8%+3 digits) 1.8992 kΩ kΩ
2 MΩ 1 kΩ (0.8%+3 digits) 0.018992 MΩ MΩ
20 MΩ 10 kΩ (1%+15 digits) 0.3499 MΩ MΩ
2000 MΩ 1 MΩ (5%+20 digits) 119.95 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
20 nF 10 pF (2.5%+20 digits) 0.69975 nF nF
200 nF 100 pF (2.5%+20 digits) 6.9975 nF nF
2 F 1 nF (2.5%+20 digits) 0.069975 F F
20 F 10 nF (2.5%+20 digits) 0.69975 F F
200 F 100 nF (5%+5 digits) 10.495 F F

  • Display mode: LCD; Max display: 1999 (3 1/2) digits automatic polarity display;
  • Measurement method: double integral A/D conversion;
  • Sampling rate: about 3 time per second;
  • Over-range display: the highest digit displays "OL" or "-OL"
  • Low voltage display
  • Power supply: one 9V battery (6F22 or equivalent model);
  • Dimension: 189x97x35mm / 7.4x3.8x1.4 in
  • Weight: about 400g / 14.1oz (including 9V battery);
1. Red and Black Test leads



2. 9V battery (design may vary)


3. Thermocouple K-Type

4. Input adapter



5. Instruction Manual

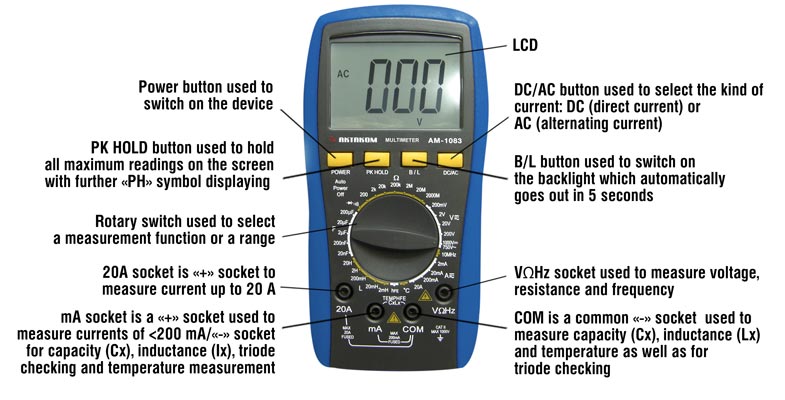

Controls of AM-1083 multimeter

Voltage measurement

  1. Insert the black pencil into the "COM" jack, and the red one into the "V/Ω/Hz" jack;
  2. Turn the switch to position "V". If the level of voltage to be measured is unknown then select the biggest range and then decrease the range step by step until getting the value with the highest resolution.
  3. Popup the key "DC/AC" to enter into DC mode if measuring DC; Press down the key "DC/AC" to set into AC mode.
  4. The screen will show the voltage measured if touch the testing point using the pencils; the point touched by the red pencil is in positive voltage if the value showed is positive.
Notice:
  1. As showed, "OL" indicates the range is over and shall switch to a higher range.
  2. The voltage to be tested shall not over DC 1000V or AC 750V. The pencils shall be away from the testing point as switching functions or ranges.
  3. When measuring high voltage circuit, any parts of your body should not touch the high voltage circuit, otherwise it may hurt your body.

Current measurement

  1. Insert the black pencil into the "COM" jack, and the red one into the "mA" or "20A" jack.
  2. Turn the switch to position "A". If the level of current to be measured is unknown then select the biggest range and then decrease the range step by step until getting the value with the highest resolution.
  3. Popup the key "DC/AC" to enter into DC mode if measuring DC; press down the key "DC/AC" to set into AC mode.
  4. The screen will show the value of current measured if connect in parallel the pencil to the circuit to be tested; the point touched by the red pencil is in positive voltage if the value showed is positive.
Notice:
  1. As showed, "OL" indicates the range is over and shall switch to a higher range.
  2. The input in "mA" jack shall not over 200mA and "20A" not over 20A (less than 10 seconds of testing duration) as measuring current; the pencils shall be away from testing points as switching function or range.

Resistance measurement

  1. Insert the black pencil into the "COM" jack, and the red one into the "V/Ω/Hz" jack;
  2. Turn the range switch to resistance position, then bride two pencils at the two ends of the resistor.
Notice:
  1. "OL" will be displayed in screen if the resistance is over the range, then you shall increase the range by one step;
  2. When input is open circuit, it will display status of overload;
  3. When measuring resistance on line, ensure that all power of circuit tested are turn down and all capacitor are discharged completely;
  4. Never input voltage if in resistance measurement mode!
  5. It normal for resistance higher than 1MΩ that the reading data is not stable for the first several seconds;

Capacitance measurement

  1. Switch to a proper range, and insert pencils into "mA" and "com" jack.
  2. Connect the two pencils in parallel to the two ends of the capacitor. Please pay attention to the polarity, as the "com" for positive and "mA" for negative.
Notice:
  1. If capacitance exceeds the range selected, "OL" will be displayed in screen, then you shall increase the range by one step.
  2. The LCD may show some rudimental digits upon the starting of capacitance measurement. It’s normal and will not affect the testing result;
  3. If there is serious creepage or capacitor broken down in high capacitance range, the digits showed will be random and unstable.
  4. Please discharge capacitor completely to avoid device damage before measuring capacitance.

Inductance measurement

  1. Switch to a proper range, and insert pencils into "mA" and "com" jack.
  2. Bridge the pencils on the two ends of inductor.
Notice:
  1. If inductance exceeds the range selected, "OL" will be displayed in screen, then you shall increase the range by one step.
  2. The inductance value measured for identical inductor may be different if there is different impendence;
  3. If in range 2mH, please short pencils and measure lead inductance, and then subtract the inductance from the value measured.
  4. Avoid measuring small inductor in high range, or the accuracy is not guaranteed.

Temperature measurement

Turn range switch to "°C", insert the cathode (black pin) of cold end (free end) of thermocouple into "mA" jack, anode (red pin) into "COM" jack, put the working end (temperature measurement end) of thermocouple on the surface or inside the object to be tested. Then you can read temperature from the screen, and the data is in centigrade.

Frequency measurement

  1. Insert pencils or shielded cable into "COM" and "V/Ω/Hz" jack;
  2. Turn range switch to frequency position and bridge pencils or cables over the signal source or load tested.
Notice:
  1. The device can still work if the input is higher than 10V virtual value, but the accuracy is not guaranteed;
  2. In noise environment, you'd better use shield cable to measure small signal;
  3. When measuring high voltage circuit, any parts of your body should not touch the high voltage circuit, otherwise it may hurt your body.
  4. Never input voltage higher than 250V DC or AC peak value, otherwise it may damage your device.

Transistor hFE Test

  1. Turn the range switch to "hFE" position;
  2. Insert testing accessory into "mA" and "com" jack. Please pay attention to the polarity, as the "com" for positive and "mA" for negative.
  3. To determine the triode's type, NPN or PNP, insert the emitting, base and collector electrode into the corresponding jacks in testing accessory.

Diode and open circuit test

  1. Insert the black pencil into "COM" jack, and the red one into the "V/Ω/Hz" jack (Notice: the red pencil is anode);
  2. Turn the range switch to position "", connect pencils in parallel to the diode tested, with the red pencil to the anode and the black to cathode, then the reading value will be approximate forward voltage drop of the diode;
  3. Connect pencils to two points of the circuit to be tested, if buzzer sounds, then the resistance between the two points is lower than (70±20)Ω.

Frequently Asked Questions

  • Can I deactivate Auto Power Off function of AKTAKOM AM-1083 multimeter?
  • Does AKTAKOM AM-1083 multimeter have auto power off function?

  • Can I deactivate Auto Power Off function of AKTAKOM AM-1083 multimeter?

    Auto Power Off function can’t be deactivated in this very model.


    Up

    Does AKTAKOM AM-1083 multimeter have auto power off function?

    Yes, it does. There is Auto Power Off function in AM-1083: the device power automatically goes off if you do not use the device within 20 minutes. To start the operation again press POWER button twice.


    Up
