AM-1108 Digital Multimeter

AKTAKOM AM-1108 Digital Multimeter
Click an image to enlarge
Brand:AKTAKOM
Warranty:1 year
User's Guide:Download
USB (Universal Serial Bus) Bar graph indicator

AM-1108 is a handheld multimeter with battery supply, which is designed to measure a wide range of electrical parameters. Also it has a recorder function and an ability to connect to a PC.

Retail price :$189.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Sold out

Subscribe

AM-1108 is a handled, battery-operated tool for measuring electrical parameters. It has all the features of a digital millimeter and measure AC voltage, DC voltage, AC current, DC current, resistance, capacitance, frequency, duty cycle ratio, dBm, TC, RTD, Diode Test, and Continuity Check.

Features:

  • Large LCD screen could display the three characteristic of one input signals
  • Different reference impedance for dB measure function
  • AUTO HOLD, DISPLAY HOLD and PEAK HOLD to display the measuring value
  • Panel calibration function
  • Three convenient data recording modes: LOG mode, MANUAL mode, and COMP mode
  • USB-IR jack to connect with a PC
  • Dimensions: 205x95x42mm / 8x3.7x1.7in
  • Weight: 500g / 17.6oz

DC Voltage (DCV)1000 V
DCV Accuracy(0.2%+4)
DCV Resolution0.01 mV
AC Voltage (ACV)750 V
ACV Accuracy(0.5%+4)
ACV Resolution0.1 mV
DC Current (DCA)10 A
DCA Accuracy(0.2%+4)
DCA Resolution0.1 A
AC Current (ACA)10 A
ACA Accuracy(0.5%+4)
ACA Resolution0.1 A
Frequency100 kHz
Duty Cycle0.1%...99%
Resistance40 MΩ
Capacitance100 F
Temperature-200...950 C
Temperature resolution1 C
Temperature sensor typeType K thermocouple
Diode test+
Continuity check+
Autorange+
Data hold+
Min/Max measurement+
Peak hold+
Special featuresThree modes of readings record (LOG, MANUAL, COMP), Measurement in dB with different level of input impedance
InterfaceUSB
DisplayLCD
Bar graph indicator+
Power supply1.5 V x 4 batteries
Dimensions8 x 3.7 x 1.7 in / 205 x 95 x 42 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
40 mV 0.01 mV (0.5%+6 digits) 0.25995 mV mV
400 mV 0.1 mV (0.2%+4 digits) 1.1998 mV mV
4 V 0.001 V (0.2%+4 digits) 0.011998 V V
40 V 0.01 V (0.2%+4 digits) 0.11998 V V
400 V 0.1 V (0.2%+4 digits) 1.1998 V V
1000 V 1 V (0.5%+4 digits) 8.995 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 mV 0.1 mV (1%+4 digits) 4.399 mV mV
4 V 0.001 V (0.5%+4 digits) 0.023995 V V
40 V 0.01 V (0.5%+4 digits) 0.23995 V V
400 V 0.1 V (0.5%+4 digits) 2.3995 V V
750 V 1 V (0.5%+4 digits) 7.745 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.1 A (0.2%+4 digits) 1.1998 A A
4000 A 1 A (0.2%+4 digits) 11.998 A A
40 mA 0.01 mA (0.2%+4 digits) 0.11998 mA mA
400 mA 0.1 mA (0.2%+4 digits) 1.1998 mA mA
4 A 0.001 A (0.5%+4 digits) 0.023995 A A
10 A 0.01 A (1%+4 digits) 0.1399 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 A 0.1 A (0.5%+4 digits) 2.3995 A A
4000 A 1 A (0.5%+4 digits) 23.995 A A
40 mA 0.01 mA (0.5%+4 digits) 0.23995 mA mA
400 mA 0.1 mA (0.5%+4 digits) 2.3995 mA mA
4 A 0.001 A (1%+4 digits) 0.04399 A A
10 A 0.01 A (1%+4 digits) 0.1399 A A

Frequency

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
50 Hz 0.01 Hz (0.1%+3 digits) 0.07999 Hz Hz
500 Hz 0.1 Hz (0.1%+3 digits) 0.7999 Hz Hz
5 kHz 1 Hz (0.1%+3 digits) 0.007999 kHz kHz
50 kHz 0.01 kHz (0.1%+3 digits) 0.07999 kHz kHz
100 kHz 0.1 kHz (0.1%+3 digits) 0.3999 kHz kHz

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
400 Ω 0.1 Ω (0.2%+4 digits) 1.1998 Ω
4 kΩ 0.001 kΩ (0.2%+4 digits) 0.011998 kΩ kΩ
40 kΩ 0.01 kΩ (0.2%+4 digits) 0.11998 kΩ kΩ
400 kΩ 0.1 kΩ (0.2%+4 digits) 1.1998 kΩ kΩ
4 MΩ 0.001 MΩ (0.5%+4 digits) 0.023995 MΩ MΩ
40 MΩ 0.01 MΩ (1%+4 digits) 0.4399 MΩ MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
50 nF 0.01 nF (4%+5 digits) 2.0496 nF nF
500 nF 0.1 nF (2%+5 digits) 10.498 nF nF
5 μF 0.001 μF (2%+5 digits) 0.10498 μF μF
50 μF 0.01 μF (2%+5 digits) 1.0498 μF μF
100 μF 1 μF (4%+5 digits) 8.96 μF μF

  • Large LCD screen could display the three characteristic of one input signals
  • Different reference impedance for dB measure function
  • AUTO HOLD, DISPLAY HOLD and PEAK HOLD to display the measuring value
  • Panel calibration function
  • Three convenient data recording modes: LOG mode, MANUAL mode, and COMP mode
  • USB-IR jack to connect with a PC
  • Dimensions: 205x95x42mm / 8x3.7x1.7in
  • Weight: 500g / 17.6oz
1. Red and Black Test leads



2. USB-cable





3. Battery: 1.5V AAA x 4



4. Multimeter bag



5. Instruction Manual


The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is paid-for and its cost is included into device value. In the new version of the software, when connecting the unit for the first time, it will ask for a license (access key). It is available online after product registration. Insert the entire character set by coping and pasting it from www.tmatlantic.com. Follow the instructions on the site. We recommend that you make and keep a copy of the downloaded software. Follow our websites news releases to receive software updates.

OPTIONAL ACCESSORIES:


Recording your Software on CD

Measuring DC Voltage

  1. Set the rotary switch to position, and "DC", "V" will be on display.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal.
  3. Connect the leads to the tested power.
  4. Read the measuring results from the screen.

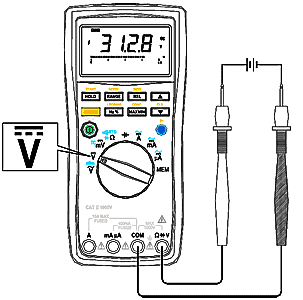

DCV Measurement

Warning
  • Do not apply more than DC 1000V or AC 750rms voltage; the meter will possible be damaged though the value could be displayed.
  • Indicator "" is on display for safety note when 30V ac and/or dc voltage present at the input terminals
  • The meter beeps constantly if the input voltage is more than AC 750V rms, which is over the meter’s range.

Measuring DC mV Voltage

  1. Set the rotary switch to DC mV symbol position, and "DC" "mV" will be on display.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "Ωdiode symbolV" terminal.
    DC mV Measurement
  3. Connect the leads to the tested power.
  4. Read the measuring results from the screen.

Measuring TC

  1. Set the rotary switch to position, and press blue button () to select TC measurement.
  2. Insert TC into "COM" and "ΩV" terminals, make sure the TC jack with symbol "+" is connected into the "ΩV" terminal.
  3. Read the measuring results from the screen.

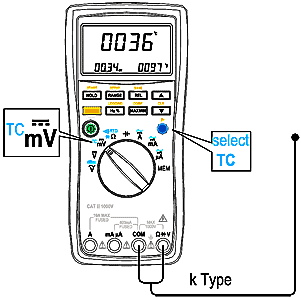

TC Measurement

The temperature degree is shown on the primary display, the TC value on the secondary display and Fahrenheit degree on elapsed time display.
When the output jack is open circuit, the screen displays OL.
Warning
To avoid possible electric shock or personal injury, do not connect the TC with the live circuit.

Measuring AC Voltage

  1. Set the rotary switch to position, and "AC" "V" will be on display.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal.
  3. Connect the leads to the testing power.
  4. Read the measuring results from the screen.
  5. Press to display the frequency and duty cycle ratio of the tested signals.

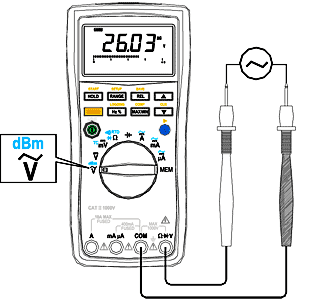

ACV Measurement

Warning
  • Do not apply more than DC 1000V or AC 750 rms voltage; the meter will possible be damaged though the value could be displayed.
  • Indicator “” is on display for safety note when 30VAC and/or dc voltage present at the input terminals
  • The meter beeps constantly if the input voltage is more than AC 750V rms, which is over the meter’s range.

dBm Measurements in AC Volts Functions

The ac volts functions allow you to display readings as deviations in dB (decibels) above or below an established level. Set up dB measurements with the following procedure:

  1. Make an ac volt measurement to be used as a reference point.
  2. Press to select dB. The dBm value appears in the primary display and the ac volts reading appears in the secondary display.
  3. Press again to turn dB off.
Normally, dB is measured as dBm, which is a measure of decibels relative to 1 milliwatt. The meter assumes a resistance of 600Ω in making this calculation. This resistance can be set for any value for 50Ω, 75Ω,93Ω, 100Ω, 150Ω, 300Ω, 600Ω, 800Ω, 1200Ω, 2400Ω, using the meters setup capabilities to change the resistance.

dBm Measurement

Note
If dBm is displayed, check that thereference resistance value closely matches the impedance of the system being measured.
dB is calculated with the following formula:

dBm=20xlog10(Vx/Vr),

For dBm, Vr is the voltage across the reference resistance at 1mW. For example, Vr would be 0.7746V with a 600Ω reference resistance.

Measuring Resistance

warning symbol Warning
To avoid possible damage to the meter or to the equipment under test, or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before measuring resistance.

The meter’s resistance ranges are 400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ, 4.000MΩ and 40.00MΩ.
To measure resistance, proceed as follows:

  1. Set the rotary switch to position (Default value in this function).
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal.
  3. Connect the leads to the tested power.
  4. Read the measuring results from the screen.
Caution
  • "OL" appears on the display if the resistance under test is open or the value surpasses the maxim range.
  • The test lead can add 0.1Ω to 0.2Ω of error to resistance measurements. To test the leads, touch the probe tips together and read the resistance of the leads. If necessary, you can press to automatically subtract this value.
  • Wait for several seconds for stable reading when measuring resistance more than 1MΩ.

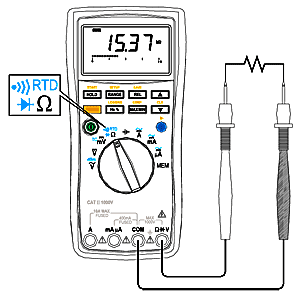

Resistance Measurement

Testing Diodes

warning symbol Warning

To avoid possible damage to the meter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before testing diodes.

Use the diode test to check diodes, transistors, and silicon-controlled rectifiers (SCR), and other semiconductor devices. The test sends a current through a semiconductor junction, and then measures the junction’s voltage drop. A typical junction drops 0.5V to 0.8V.

To test a diode, proceed as follows:

  1. Set the rotary switch to position and press blue button () to select diodes testing, and the symbol "" will be shown on the left part of the screen.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal. The polarity of the black lead and red lead is "-" and "+" respectively.

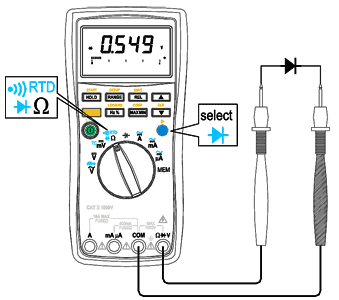

Test Diode

In a circuit, a similar diode should still indicate a forward bias reading of 0.5V to 0.8V; however, the reverse-bias reading can vary depending on the resistance of other pathways between the probe tips.

Note
In the live diodes testing, the resistance of other pathways and between the probe tips will affect the reading of reverse-bias voltage.

Testing for Continuity

warning symbol Warning
To avoid possible damage to the meter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before testing for continuity.

Continuity is the presence of a complete path for current flow. The continuity test features a beeper that sounds if a circuit is
complete. The beeper allows you to perform quick continuity tests without having to watch the display.

To test continuity, proceed as follows:

  1. Set the rotary switch to position, and press blue button () twice to select continuity check and the symbol "" will be shown on the left part of the screen.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal.
  3. Connect the leads to the two ends of the tested circuit.
  4. The inner beeper sounds when the tested circuit resistance is less than 50Ω, which indicates the circuit is through.

Measuring RTD

  1. Set the rotary switch to position, and press blue button () three times to select diodes testing.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal.
  3. Connect the leads to the tested RTD.
  4. Read the measuring results from the screen.

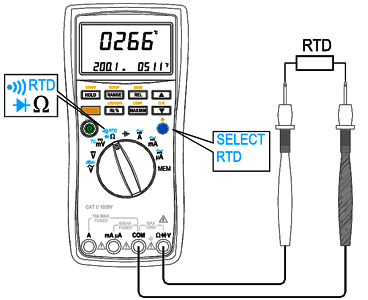

RTD Measurement

Measuring Capacitance

warning symbol Warning
To avoid possible damage to the meter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before measuring capacitance. Use the dc voltage function to confirm that the capacitor is discharged.

The meter’s capacitance ranges are 50.00nF, 500.0nF, 5.000μF, 50.00μF, 100.0μF.
To test capacitance, proceed as follows:

  1. Set the rotary switch to position to select capacitance measurement.
  2. Insert the black lead into "COM" terminal, and the red lead to into the "ΩV" terminal.
  3. Connect the leads to the tested capacitance.
  4. Read the measuring results from the screen.

Caution

  • OL appears on the display if the tested capacitance is open or the value surpasses the maxim range.
  • If the tested capacitance is polar capacitance, then connect the red lead with the positive point and the black lead with the negative point.
  • High capacitance test needs more time, and 30s is necessary in 100μF position.
  • To improve the measurement accuracy of small value capacitors, press with the test leads open to subtract the residual capacitance of the meter and leads.
  • The remaining voltage of capacitance, insulated impedance and dielectric absorption could cause measuring errors.
  • Only Auto ranging mode is available in capacitance measurement.

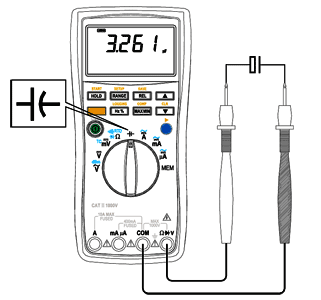

Measuring Capacitance

Measuring Current

warning symbol Warning

  • Never attempt an in-circuit current measurement where the open-circuit potential to earth is greater than 1000V. You may damage the meter or be injured if the fuse blows during such a measurement.
  • You must open the circuit under test, then place the meter in series with the circuit.

Caution
To avoid possible damage to the meter or to the equipment under test, check the meter’s fuses before measuring current. Use the proper terminals, function, and range for your measurement. Never place the probes across (in parallel with) any circuit or component when the leads are plugged into the current terminal.

  1. Insert the black lead into the COM terminal. Insert the red lead in an input appropriate for the measurement range as shown in Table
  2. When using A jack, set the rotary switch on current symbol position; When using mA μA jack, set the rotary switch on position if the current is less than 4000μA and position if the current is more than 4000μA.
  3. The meter is preset to direct current, and the screen shows "DC"; Press blue push button()once to select alternating current measurement and the screen shows "AC".
  4. Open the circuit path to be tested. Touch the red probe to the more positive side of the break; touch the black probe to the more negative side of the break. Reversing the leads will produce a negative reading, but will not damage the meter.
  5. Turn on power to the circuit, and read the measuring results from the screen.
  6. Press to toggle between the frequency and duty cycle ratio of the signals under test.
  7. Turn off power to the circuit and discharge all high voltage capacitors. Remove the meter and restore the circuit to normal operation.
Rotary SwitchInputRanges
current symbolA4.000…10.00A
mA40.00…400.0mA
μA400.00…4000μA

Notice
  • Start measuring from the high range if the current can’t be evaluated.
  • For safety, the measuring time should be limited within 15s, while the interval should be more than 10 min when measuring high current. If the input current is more than 10.00A, then the inner beeper sounds constantly indicating the value surpass the range.

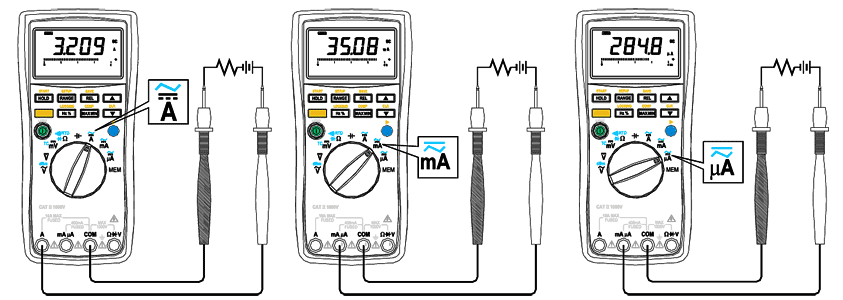

DC Current Mesurement


AC Current Mesurement

Measuring Frequency and Duty Cycle Ratio

In voltage and current (DC mV excluded) measurement, press to display frequency->duty cycle ratio->voltage (current),
frequency, duty cycle ratio, and then back to voltage (current).

Notice
Please select the proper range in voltage or current function before measuring frequency and duty cycle ratio.

Frequently Asked Questions

  • How can I deactivate Auto Power Off function of AKTAKOM AM-1108 multimeter?
  • Does AKTAKOM AM-1108 multimeter have auto power off function?

  • How can I deactivate Auto Power Off function of AKTAKOM AM-1108 multimeter?

    Auto Power Off function can be deactivated in the device setting menu. To enter the setting mode power on AM-1108 keeping RANGE button pressed. In the setting mode the parameter name appears in an additional area of the screen and the value of this parameter can be seen in the main screen area. To change the parameter press RANGE, to save the changed value press REL (SAVE sign in the main screen area will confirm that the parameter has been successfully saved). To exit the setting mode simply power the device off. Auto Power Off time can be adjusted at the range from 0 to 60 minutes with 10 minutes step. Set it to 0 and the multimeter won’t power off automatically.


    Up

    Does AKTAKOM AM-1108 multimeter have auto power off function?

    Yes, it does. There is Auto Power Off function in AM-1108: the device power automatically goes off if you do not use the device within 10 minutes. If you’d like to switch the device on after it was automatically powered off press any button or use the rotary switch.


    Up

    El multmetro manual AM-1108 con alimentacin de bateras, est diseado para medir una amplia gama de parmetros elctricos. Tambin tiene una funcin de grabacin y la capacidad de conectarse a un PC.

    Caractersticas:

    • Pantalla LCD grande que puede mostrar la caracterstica tres de una seal de entrada
    • Para la funcin dB utiliza diferente referencias de la impedancia
    • AUTO HOLD, DISPLAY HOLD and PEAK HOLD para mostrar el valor de la medicin
    • Panel con funcin de calibracin
    • Tres modos convenientes de grabacin: modo LOG, modo MANUAL y modo COMP
    • Conector USB-IR para conectar con el PC
    • Dimensiones: 205x95x42mm / 8x3.7x1.7in
    • Weight: 500g / 17.6oz

    Back to the section

    Please give us your feedback to help us improve our website

    * - required fields

    Hot AKTAKOM! Limited time offer!
    Site map|Privacy statement|Terms of Use & Store Policies|How to Buy|Shipping|Payment|© T&M Atlantic, Inc.,2010-2017
