AMM-1130 Digital Multimeter

AKTAKOM AMM-1130 Digital Multimeter
Click an image to enlarge
Brand:AKTAKOM
User's Guide:Download
Optical USB True RMS Bar graph indicator

Multimeter AKTAKOM AMM-1130 is a reliable handheld multipurpose instrument with a wide range of functions and built-in optically isolated USB interface.

Retail price :$109.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

Almost sold out,1left

BuyAdd to cart

Multimeter AKTAKOM AMM-1130 is a reliable handheld multipurpose instrument with a wide range of functions and built-in optically isolated USB interface.

  • 22000 counts measurement
  • ACV and DCV measurements up to 1000V
  • DC measurement accuracy up to 0.05%
  • 0.01 Ω resistance resolution and 10μV voltage resolution
  • Linear frequency measurement, logic frequency/duty ratio measurement
  • Capacitance measurement from 0.001nf to 220mF
  • AC true RMS measurement
  • Temperature Measurement
  • Min/Max values measurement
  • Relative measurement
  • PEAK max/min measurement
  • 46-segment bar graph indication and frequency measurement path
  • Automatic shutdown / continuous working mode selection
  • Back light control
  • USB infrared interface
  • Display, record and graphics software of computer
  • Overload protection
  • Sound alarm for misplug

DC Voltage (DCV)1000 V
DCV Accuracy(0.1%+8)
DCV Resolution0.01 mV
AC Voltage (ACV)1000 V
ACV Accuracy(0.5%+20)
ACV Resolution0.01 mV
DC Current (DCA)10 A
DCA Accuracy(0.3%+15)
DCA Resolution0.01 A
AC Current (ACA)10 A
ACA Accuracy(1.0%+20)
ACA Resolution0.01 A
Frequency2 Hz...200 kHz
Duty Cycle5.0%...94.9%
Resistance220 Ω...220 MΩ
Capacitance22 nF...220 mF
Temperature-50 C...1000 C
Temperature resolution0.1 C
Temperature sensor typeType K thermocouple
Diode test+
Continuity check+
True RMS+
Autorange+
Data hold+
Min/Max measurement+
Peak hold+
Relative measurement+
InterfaceOptical USB
DisplayLCD, 22000 counts
Bar graph indicator+
Power supply1.5 V x 6 batteries
Dimensions7.9 x 3.9 x 1.6 in / 200 x 100 x 40 mm

Accuracy tables

DC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValue Learn an absolute error of your measurementValue+error
220 mV 0.01 mV (0.1%+8 digits) 0.29999 mV mV
2.2 V 0.1 mV (0.2%+8 digits) 0.0051998 V V
22 V 1 mV (0.2%+8 digits) 0.051998 V V
220 V 10 mV (0.2%+8 digits) 0.51998 V V
1000 V 100 mV (0.2%+8 digits) 2.7998 V V

AC Voltage

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
220 mV 0.01 mV (0.5%+20 digits) 1.29995 mV mV
2.2 V 0.1 mV (0.8%+40 digits) 0.0215992 V V
22 V 1 mV (0.8%+40 digits) 0.215992 V V
220 V 10 mV (0.8%+40 digits) 2.15992 V V
1000 V 100 mV (0.8%+40 digits) 11.9992 V V

DC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
220 A 0.01 A (0.3%+15 digits) 0.80997 A A
2200 A 0.1 A (0.3%+15 digits) 8.0997 A A
22 mA 1 A (0.3%+15 digits) 0.080997 mA mA
220 mA 10 A (0.3%+15 digits) 0.80997 mA mA
10 A 1 mA (0.3%+15 digits) 0.044997 A A

AC Current

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
220 A 0.01 A (1.0%+20 digits) 2.3999 A A
2200 A 0.1 A (1.0%+20 digits) 23.999 A A
22 mA 1 A (1.0%+20 digits) 0.23999 mA mA
220 mA 10 A (1.0%+20 digits) 2.3999 mA mA
10 A 1 mA (1.5%+30 digits) 0.179985 A A

Resistance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
220 Ω 0.01 Ω (0.5%+8 digits) 1.17995 Ω Ω
2.2 kΩ 0.1 Ω (0.8%+20 digits) 0.0195992 kΩ
22 kΩ 1 Ω (0.8%+20 digits) 0.195992 kΩ
220 kΩ 10 Ω (1.0%+40 digits) 2.5999 kΩ
2.2 MΩ 100 Ω (1.0%+40 digits) 0.025999 MΩ
22 MΩ 1 kΩ (1.2%+40 digits) 0.303988 MΩ
220 MΩ 10 kΩ (1.5%+40 digits) 3.69985 MΩ

Capacitance

RangeResolutionAccuracyAbsolute errorValue-errorValueValue+error
22 nF 0.001 nF (1.0%+20 digits) 0.23999 nF nF
220 nF 0.01 nF (1.0%+20 digits) 2.3999 nF nF
2.2 F 0.1 nF (1.0%+20 digits) 0.023999 F F
22 F 1 nF (1.5%+20 digits) 0.349985 F F
220 F 0.01 F (1.5%+20 digits) 3.49985 F F
2.2 mF 0.1 F (2.5%+20 digits) 0.0569975 mF mF
22 mF 1 F (3.0%+20 digits) 0.67997 mF mF
220 mF 10 F (1.0%+20 digits) 2.3999 mF mF

Specifications

Function Range Resolution Accuracy
DC Voltage 220mV 0.01mV (0.1%+8)
2.2V 0.1mV (0.2%+8)
22V 1mV
220V 10mV
1000V 100mV
AC Voltage (40 Hz to 1 kHz) 220mV 0.01mV (0.5%+20)
2.2V 0.1mV (0.8%+40)
22V 1V
220V 10mV
1000V 100mV
AC Current (40 to 400Hz) 220uA 0.01uA

(1.0%+20)

2200uA 0.1uA
22mA 1uA
220mA 10uA
10A 1mA (1.5%+30)
DC Current  220uA 0.01uA

(0.3%+15)

2200uA 0.1uA
22mA 1uA
220mA 10uA
10A 1mA (0.8%+30)
Resistance 220Ω 0.01Ω (0.5%+8)
2.2kΩ 0.1Ω (0.8%+20)
22kΩ (0.8%+20)
220kΩ 10Ω (1.0%+40)
2.2MΩ 100Ω (1.0%+40)
22MΩ 1kΩ (1.2%+40)
220MΩ 10kΩ (1.5%+40)
Temperature -50C 50C 0.1C (3.0%+3C)
50C 400C 0.1C (1.0%+3C)
400C 1 000C 0.1C (2.5%+3C)
-58F 122F 0.1F (3.0%+37.4F)
122F 752F 0.1F (1.0%+37.4F)
752F 1832F 0.1F (2.5%+37.4F)
Capacitance 22nF 0.001nF (1.0%+20)
220nF 0.01nF (1.0%+20)
2.2μF 0.1nF (1.0%+20)
22μF 1nF (1.5%+20)
220μF 0.01μF (1.5%+20)
2.2mF 0.1μF (2.5%+20)
22mF 1μF (3.0%+20)
220mF 10μF (1.0%+20)
Diode 2.2V 0.1mV approx. forward voltage of diode

Logic Frequency Frequency Range Sensitivity Accuracy
2Hz∼10MHz Vp 0.35∼5V square wave (0.05% + 8)

Linear Frequency Frequency
Range
Voltage / Current Range Sensitivity Accuracy
2Hz ∼ 20kHz 20kHz ∼ 200kHz
2Hz ∼ 200kHz
(sine wave)
220mV 150mV 150mV

 (0.05% + 8)

2.2V 0.15V 1V (≤70kHz)
22V 2V 7V (≤140kHz)
220V 25V 25V (≤100kHz)
1000V 50V (≥50kHz) 100V (≤20kHz)

Duty Ratio Duty Ratio Range Resolution Accuracy
5%∼94.9% 0.1% (2%+10)


Specifications

  • Voltage between the measurement end and ground is of 1000V AC/DC. 1000V CAT II, 2th pollution grade
  • 22000 counts, automatic / manual range, basic sampling rate 2t/s and 46 segment bar graph indication and frequency measurement path
  • When rotary switch being in the positions of mV, logic frequency, diode, resistance and capacitance, the maximum overload protection voltage will be 250V (effective value), while in the positions of μA/mA the protection current being 0.25A, and in the position of A, the protection current being 10A
  • Over range indication OL
  • When the total voltage of batteries being lower than 7V, the symbol for battery display will be lighted
  • Fuse being 0.25A/250V,Ш5X20 (μA/mA end) and 10A/250V ?6.2X32 (A end)
  • Six AAA batteries X 1.5V
  • Infrared coupling USB interface
  • Operating temperature: 0C∼30C (relative humidity 0∼80%) 31C∼51C (relative humidity 0∼50%)
  • Storage temperature: -20C∼60C (relative humidity <= 80%)
  • Altitude: operation less than 2000m, storage less than 10000m
  • Dimensions: 7.9x3.9x1.6in / 200x100x40mm
  • Weight: 1.1lb / 500g.

General accessories:

  • Test leads

  • "Crocodile" clips

  • Thermocouple K-Type

  • USB-cable with galvanic isolation

  • Batteries

  • Multimeter Bag


  • User manual

The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is paid-for and its cost is included into device value. In the new version of the software, when connecting the unit for the first time, it will ask for a license (access key). It is available online after product registration. Insert the entire character set by coping and pasting it from www.tmatlantic.com. Follow the instructions on the site. We recommend that you make and keep a copy of the downloaded software. Follow our websites news releases to receive software updates.

OPTIONAL ACCESSORIES:

Recording your Software on CD

Controls of AKTAKOM AMM-1130 Digital Multimeter

DCV Measurement

The range of voltage is of DC 0.23…1000V and the methods are as follows:

  1. Switch and set the rotary-table switch to the position .
  2. Insert the red testing line into the VΩ°C end and the black testing line into the COM end.
  3. When performing DCV measurement, connect the red probe to the positive polarity of the measured voltage and the black probe to the negative polarity of the measured voltage.
  4. Read the measured value from the display screen. If OL displaying on the meter, it indicates the measured voltage exceeding the range of the meter and it is necessary to remove the both red and black probes from the measured circuit immediately.
  5. When performing DCV measurement, by pressing the RANGE key it is possible to select range manually. If OL displaying during manual range measurement, it is necessary to select a larger range. If OL displaying under the maximum range, it indicates the voltage exceeding 1000V and it is necessary to remove the both red and black probes from the measured circuit immediately.
Notes: in case of probe hanging in the air, the voltage inducted by the testing line may cause unstable readings on the display screen, but that will not affect the accuracy of measurement.

Warning! Not try to measure a voltage higher than 1000V

ACV Measurement

The measurement is shown as in Figure, with voltage range being of AC 0.23V…1000V and the measurement methods being as follows:

  1. Turn on the power switch and set the rotary switch to the position of .
  2. Insert the red and black testing lines into VΩHz end and COM end respectively.
  3. Press FUNC. key to select ACV measurement mode.
  4. Connect the meter to the two ends of the measured voltage with the red and black probes.
  5. Read the meter’s data from the display screen. When OL displaying on the meter, it indicates the measured voltage exceeding the meter’s range and it is necessary to remove both the red and black probes from the measured circuit immediately.
  6. By pressing the RANGE key it is possible to select range manually. Indicator of range displays range. While displaying OL during manual range measurement, it is necessary to select a larger range. When OL displaying under the maximum range, it indicates the voltage exceeding 1000V, so it is necessary to remove both the red and black probes from the measured circuit immediately.
Notes: in case of probe hanging in the air, the voltage inducted by the testing line may cause unstable readings on the display screen, but that will not affect the accuracy of measurement.

Warning! Not try to measure a voltage higher than 1000V

DC mV/AC mV Measurement

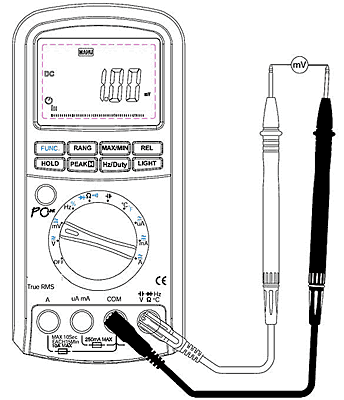

The testing chart is shown in the Figure. The voltage measurement range is of 10μV…220mV and the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position .
  2. Insert the red testing line into the VΩHz end and the black testing line into the COM end.
  3. Press the FUNC. key to select DCmV measurement modes.
  4. When performing DCmV or AcmV measurement, connect the red probe to the positive polarity of the measured voltage and the black probe to its negative polarity.
  5. Read the measured value from the display screen. If OL displaying on the meter, it indicates the measured voltage exceeding the range of the meter and it is necessary to remove both the red and black probes from the measured circuit immediately.
  6. In this mode, it is null to press the RANGE key
Notes:
  • In case of probe hanging in the air, the voltage inducted by the testing line may cause unstable readings on the display screen, but that will not affect the accuracy of measurement.
  • The meter is a true rms responding meter. When the input leads are shorted together in the ac functions, the Meter may display a residual reading between 1 and 30 counts. It will not attect stated accuracy, but if using REL to offset this reading may produce a much larger constant error in later measurements.

Logic Frequency/Duty Ratio Measurement

The testing chart is shown in the Figure. The frequency range is of 2.01Hz…10MHz (Vp 0.35…5V), while the duty ratio measurement range being of 5%…94.9%. And the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position .
  2. Insert the red testing line into the VΩHz end and the black testing line into the COM end.
  3. Press the HZ/DUTY key to select the duty ratio (%) modes.
  4. Connect the red testing line to high logic level, the black one to low logic level.
  5. Read the measured value from the display screen. If the frequency of the measured signal is lower than 2.01Hz, the reading will be displayed as zero. If the amplitude of signal is too low or the low level is larger than 0.35V, the reading will also displayed as zero.
  6. If the frequency of the duty ratio is lower than 5%, the reading will be displayed as UL. If the duty ratio is bigger than 95% the reading will also displayed as OL.
  7. This measurement is of automatic range or manual range, it is available to press the RANGE key

Resistance/continuity Test/Diode Measurement

The test chart is seen in Figure. The measurement range of resistance is of 0.01Ω…220MΩ and the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position Ω.
  2. Insert the red and black testing lines into the VΩH input end and the COM input end respectively.
  3. Press the FUNC, key to select resistance (Ω), the continuity ()or the diode measurement () modes
  4. For the Resistance measurement, connect the red and black probes to the two ends of resistor and read the resistance value from the display screen. If OL displaying, it indicates the resistor is larger than 220MΩ. As for the Continuity measurement, connect the red and black probes to the two measured points respectively. In case of the resistance between the two points being less than about 30Ω, the buzzer will sound while the display screen displaying the value of resistance. As for the Diode measurement, connect the red and black probes to the positive and negative polarity. while the display screen will display the forward voltage drop. If the forward voltage drop is larger than 2V the OL will be displayed. When the resistance measurement mode being implemented, it is possible to select range by pressing the RANGE key. The indicator of range indicates the value of range. If OL displaying during manual range measurement, it is necessary to select a larger range. Under the continuity measurement mode it is null to press the RANGE key.
Notes: In case of performing resistance, continuity or diode test on circuit board, it is necessary firstly to turn off the power of the circuit board and then perform the measurement. As there may be other parallel circuits, so the displayed value of test is not surely the actual value of the resistor.

Capacitance Measurement

The measurement chart is seen in Figure. The measurement range of capacitance is of 10pF…220mF and the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position .
  2. Insert the red and black testing lines into the VΩHz input end and the COM input end respectively.
  3. If exists voltage in the capacitor, connect the two ends of the capacitor for a short time to discharge.
  4. Connect the red and black probes to the two ends of the capacitor, if the measured capacitor is heteropolar, it is necessary to connect the red probe to the positive polarity of the capacitor and the black probe to its negative polarity.
  5. Read the capacitance from the display screen. If capacitance value >220mF, the meter will display OL, while capacitance value <10pF, it will display zero.
  6. It is possible to select range manually by pressing the RANGE key. The indicator of range indicates the value of range. If OL displaying during manual range measurement, it is necessary to select a larger range. If it has been the largest range, which means capacitance value >220mF.
Notes: When performing measurement on 10mF capacitor, in order to ensure measurement accuracy the meter takes a relative long time to discharge capacitor, so it is relatively slow in refreshing the measured value. In addition, not to perform Capacitance measurement on a circuit board on which there are other parallel devices, for that may leads to very large error.

Temperature Measurement

  1. Turn on the power switch and set the rotary switch to the position °C.
  2. The 'LCD' display will show the approx. current environment temperature.
  3. Press the FUNC. key to select the °C or °F measurement modes.
  4. When measuring the temperature with thermocouple, 'K' type probe for this meter can be used. Insert the black plug to the COM jack and the red one to the °C jack, touch the end of the temperature sensor to the area or surface of the object for measurement.
  5. You can get reading from LCD.

DC/AC μA Measurement

The measurement is seen in Figure, the measurement range of current is of AC or DC 0.01μA…2200μA, and the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position .
  2. Insert the red testing line into the mA/μA input end and the black testing line into the COM input end.
  3. Press the FUNC. key to select the DC μA or AC μA measurement modes.
  4. Turn off the power of the measured circuit, connect the red and black probes to the measured circuit in serial way and then turn on the power of the measured circuit.
  5. Read the measured value from the display screen. If it displays as positive during the DC measurement, it means the current is flowing into the meter from the red testing line, while it displaying as negative, it means the current is flowing into the meter from the black testing line. If it displays as OL, it means current exceeding range.
  6. During measurement of DC μA or AC μA, it is possible to select range manually by pressing the RANGE key.
Notes: In this mode the Meter may display a initial reading between 1 and 5 counts when no signal input, but that will not affect the accuracy of measurement. Using REL to offset this reading may produce a much larger constant error in later measurements.

DC/AC mA Measurements

The measurement is seen in the Figure. The measurement range of current is of AC or DC 1μA…220mA and the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position .
  2. Insert the red testing line into the mA/μA input end and the black testing line into the COM input end.
  3. Press the FUNC. key to select the DC mA or AC mA measurement modes.
  4. Turn off the power of the measured circuit, connect the red and black probes to the measured circuit in a serial way and then turn on the power of the measured circuit again.
  5. Read the measured value from the display screen. If it displays as positive during DC measurement, it means the current is flowing into the meter from the red testing line, while it displays as negative, it means the current is flowing into the meter from the black testing line. If it displays OL, indicating current exceeding range.
  6. When performing DC mA or AC mA measurement, it is possible to select range manually by pressing the RANGE key.
Notes: In this mode the Meter may display a initial reading between 1 and 5 counts when no signal input, but that will not affect the accuracy of measurement. Using REL to offset this reading may produce a much larger constant error in later measurements.

DC/AC A Measurement

The measurement is seen in Figure, the measurement range of current is of AC or DC 1mA…10A and the measurement methods are as follows:

  1. Turn on the power switch and set the rotary switch to the position .
  2. Insert the red testing line into the A input end and the black testing line into the COM input end.
  3. Press the FUNC. key to select the DC A or AC A measurement modes.
  4. Turn off the power of the measured circuit, connect the red and black probes to the measured circuit in a serial way and then turn on the power of the measured circuit again.
  5. Read the measured value from the display screen. During the DC measurement, if it displays as positive, it means the current is flowing into the meter from the red testing line, while it displays as negative, it means the current is flowing into the meter from the black testing line. If it displays OL, it indicates current exceeding range.
  6. When performing DC A or AC A measurement, it is null to press the RANGE key.

Linear Frequency Measurement

The measurement range is of 5Hz…200kHz and the measurement methods are as follows:

  1. When performing voltage or current measurement, in case of measured value being AC or including AC elements, it is possible to measure and display the alternating frequency by pressing the Hz/DUTY key. However it has a certain requirements for the amplitude of alternating signal and the meter has varied requirements for signal amplitude when it is in different ranges, for information of which please refer to Table.
  2. If the position of rotary switch is in ACV or DCV, after pressing Hz/DUTY key the RANGE key will invalidation.
  3. Press Hz/DUTY key again to enter DUTY measurement mode.
  4. Press Hz/DUTY key again to exit linear frequency.

RangeSensibility (sine wave)
220mV100mV
2.2V0.5V
22V4V
220V40V
1000V400V

Relative Value Measurement

Except for frequency/duty ratio and diode measurements, all other measurements can employ relative measurement. Press REL key to enter relative measurement and the meter will record the initial value when pressing the key. And the later displayed value is:

Displayed value = present measurement value —Initial value

Press REL again to exit relative measurement. Changes of measurement value may be found in relative measurement which also can be used for the small resistance and the small capacitance measurements, for example, when performing resistance measurement, connect the red testing line and the black testing line in short, press the REL key to record the values of resistance (resistance of both the red and black lines), and after that performing resistance measurement again the lead resistance will have been taken off from the displayed value. When performing capacitance measurement, open the red and black testing line, press REL key to record the distributed capacitance, and after that performing capacitance measurement again, the distributed capacitance will have been taken off from the displayed value. During relative measurement, analog bar is always indicating the present measurement value but not the relative value. When measurement over, OL will display instead of showing the relative value.

Maximum Value/Minimum Value Measurement

Except for frequency and diode measurements, by pressing the MAX/MIN key the meter will enter the maximum value and minimum value record state and display the maximum value. The meter measures the present value and continuously judges if it is necessary to update the maximum or minimum value. Pressing the MAX/MIN key again it is possible to select displaying the minimum value, the current value or the maximum value. When the meter being in the maximum and the minimum value record state, the analog bar is always indicating the present measurement value but not the MAX/MIN value. Under the maximum and minimum value record state, press the MAX/MIN key for two seconds and then release it, the meter will exit the MAX/MIN record state. When measurement over, OL will display instead of showing the MAX/MIN value.

PEAK max/min Measurement

When you measurement AC signal, by pressing the PEAK key less than 1second the meter will enter the Peak maximum value after it be calibration. Pressing the PEAK key again (less than 1s) it will enter the Peak minimum value. By pressing the PEAK key for more than 1 seconds and release it, the meter will exit the PEAK max/min record state. When measurement over, OL will display instead of showing the PEAK max/min value.

Backlight Control

Pressing the LIGHT key, the LCD display screens backlight will be lighted and after 60 seconds it will automatically go out. If press the LIGHT key again when the backlight is lighting, the backlight can be turned off in advance. Lighting the backlight will cause three-time higher energy consumption than the ordinary operation. So by less use of backlight, power can be saved.

Frequently Asked Questions

  • How can I deactivate Auto Power Off function of AKTAKOM AMM-1130 multimeter?
  • Does AKTAKOM AMM-1130 multimeter have auto power off function?

  • How can I deactivate Auto Power Off function of AKTAKOM AMM-1130 multimeter?

    To deactivate Auto Power Off function you need to press PC-LINK button. In the device-to-PC connection mode auto power off doesn’t work.


    Up

    Does AKTAKOM AMM-1130 multimeter have auto power off function?

    Yes, it does. There is Auto Power Off function in AMM-1130: the device power automatically goes off if you do not use the device within 15 minutes. 30 seconds before the multimeter powers off it will make 3 sound signals and before the powering-off – one more long signal. To start the operation again after it was automatically powered off it’s necessary to press FUNC button or to turn the rotary switch.


    Up

    Aktakom DMM Light Software for Multimeters

    Aktakom DMM Light software is compatible with Aktakom AMM-1130, AM-1142, AM-1152, AM-1171, AM-1118 digital multimeters.

    Learn more... Download
    (11.89 MB)
    Product registration required

    Aktakom DMM Pro Software for Multimeters

    Aktakom DMM Pro software is designed for the full-scale control of Aktakom AM-1142, AM-1152, AMM-1130, AM-1171 digital multimeters.

    Learn more...

    El Multmetro AKTAKOM AMM-1130 es un instrumento porttil muy fiable con usos mltiples. Una amplia gama de funciones y enlace USB con aislamiento ptico.

    • Medicion de hasta 22000 cuentas
    • Mediciones de ACV y DCV hasta 1000V
    • Precisin de la medicin DC de hasta 0,05%
    • Resolucin de la resistencia de 0,01 Ω y la resolucin de la tensin 10μV
    • Medicin de frecuencia lineal, frecuencia lgica / medicion de la relacin
    • Capacidad de medicin de 0.001nf de 220mF
    • Medicion de RMS verdadera de la AC
    • Medicin de la temperatura
    • Min / Max valores de medicin
    • Medida relativa
    • Pico max/min de medicion
    • 46-segmentos de barras analgico
    • Apagado automtico / continua seleccin de modo de trabajo
    • Control de luz de fondo
    • Interfaz USB infrarrojo
    • Visualizacin, grabacin y software de grficos para la computadora
    • Proteccin contra de sobrecarga
    • Alarma sonora

    Back to the section

    Please give us your feedback to help us improve our website

    * - required fields

    AKTAKOM APS-730xL series power supplies
    Site map|Privacy statement|Terms of Use & Store Policies|How to Buy|Shipping|Payment|© T&M Atlantic, Inc.,2010-2017
