AMM-3035 LCR Meter

Click an image to enlarge
Warranty:1 year
User's Guide:Download

Retail price :$160.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact

In stock now

BuyAdd to cart

AKTAKOM AMM-3035 LCR meter (Inductance (L), Capacitance (C), and Resistance (R)) Meter features withinnovative automatic selection technology, automatically measuring of R, L and C with Q, D and Θ by just turning on the meter. The testing frequency is up to 10kHz and it can output upto 100kHz test frequency. It provides high accuracy with four or five terminal Kelvin measurements.

  • Overload Indication
  • Lower Battery Indication
  • Auto Power Off (10 minutes)


  • Sampling rate: 5times/sec
  • Overload Indication: "OL" or "-OL"
  • Auto Power Off: 10 minutes
  • Operating Temp 0-50C,<=80%R.H.
  • Storage Temp: -20-60C
  • Temp. coefficient: 0.15 (Spec.Acc)/C, <18C or >28C
  • Safety: Comply with IEC61000 EMC standard
  • Power Requirement: AA size 1.5V X 4 batteries (NEDA 15A or IEC LR6)
  • Battery Life: 30 hours (Alkaline battery)

Special Offer 1+: Buy 1 AMM-3035 Get Second or more for $131.00 + Multi-Tip Screwdriver as a Gift call 786 597-7752 to place an order

Attention. Discounts for various special offers are not cumulative.

Resistance20 Ω...200 MΩ
Capacitance20 pF...20 mF
Inductance20 μH...2000 H
Continuity check+
Data hold+
Relative measurement+
Special featuresSeries/Parallel modes
Bar graph indicator+
Power supply1.5 V x 4 batteries AA size
Dimensions7.8 x 3.8 x 2.4 in / 200 x 96 x 60 mm


Inductance @ Ta=18~28°C (De)

Frequency = 100Hz/120Hz

RangeResolutionLx AccuracyDF Accuracy Measurement Mode
20.000mH 1uH 1.5%±10d1.5%50dSeries
200.00mH 0.01mH 1.4%15d1.4%50dSeries
2000.0mH 0.1mH 1.5%15d1.5%50dSeries
20.000H 1mH 1.6%10d1.6%50d---
200.00H 0.01H 1.3%10d1.3%50dParallel
2000.0H 0.1H 2.0%15d2.0%50dParallel
20.000kH 0.001kH 2.5%15d2.5%50dParallel

Frequency = 1kHz

RangeResolutionLx AccuracyDF AccuracyMeasurement Mode
2000.0uH 0.1uH 1.3%10d1.3%50dSeries
20.000mH 1uH 1.2%10d1.2%50dSeries
200.00mH 0.01mH 1.2%10d1.2%50dSeries
2000.0mH 0.1mH 1.5%15d1.5%50d---
20.000H 1mH 1.5%15d1.5%50dParallel
200.00H 0.01H 2.0%10d2.0%50dParallel
2000.0H 0.1H 2.5%15d2.5%50dParallel

Frequency = 10kHz

RangeResolutionLx AccuracyDF AccuracyMeasurement Mode
200.00uH 0.01uH 1.8%10d1.8%50dSeries
2000.0uH 0.1uH 1.5%10d1.5%50dSeries
20.000mH 1uH 1.2%10d1.2%50dSeries
200.00mH 0.01mH 1.5%15d1.5%50d---
2000.0mH 0.1mH 2.0%10d2.0%50dParallel
20.000H 1mH 2.5%15d2.5%50dParallel

Frequency = 100kHz

RangeResolutionLx AccuracyDF AccuracyMeasurement Mode
20.000uH 0.001uH 2.5%10d2.5%50dSeries
200.00uH 0.01uH 1.5%10d1.5%50dSeries
2000.0uH 0.1uH 1.3%15d1.3%50dSeries
20.000mH 1uH 2.0%15d2.0%50dParallel
200.00mH 0.01mH 2.5%15d2.5%50dParallel

Capacitance @ Ta=18~28C (De)

Frequency = 100Hz/120Hz

RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
20.000nF1pF 2.5%10d2.5%50dParallel
200.00nF 0.01nF 1.2%10d1.2%50d---
2000.0nF 0.1nF 0.9%10d0.9%50d---
20.000uF 1nF 1.0%15d1.0%50dSeries
200.00uF 0.01uF 1.2%10d1.2%50dSeries
2000.0uF 0.1uF 2.5%10d2.5%50dSeries
20.00mF 0.01mF 5.0%10d 5.0%50dSeries

Frequency = 1kHz

RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
2000.0pF 0.1pF 3.5%15d 3.5%50dParallel
20.000nF 1pF 1.0%10d 1.0%50d---
200.00nF 0.01nF 0.9%10d0.9%50d---
2000.0nF 0.1nF 1.0%10d1.0%50dSeries
20.000uF 1nF 1.2%15d1.2%50dSeries
200.00uF 0.01uF 2.5%10d2.5%50dSeries
2000uF 1uF 4%20d4%50dSeries

Frequency = 10kHz

RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
200.00pF 0.01pF 3.0%8d3.0%50dParallel
2000.0pF 0.1pF 1.0%10d1.0%50d---
20.000nF 1pF 0.9%10d0.9%50d---
200.00nF 0.01nF 0.8%10d0.8%50dSeries
2000.0nF 0.1nF 1.0%8d1.0%50dSeries
20.000uF 1nF 2.0%8d2.0%50dSeries
200.0uF 0.1uF 4.5%15d4.5%50dSeries

Frequency = 100kHz

RangeResolutionCx AccuracyDF AccuracyMeasurement Mode
200.00pF 0.01pF 2.5%15d2.5%50dParallel
2000.0pF 0.1pF 1.0%8d1.0%50dParallel
20.000nF 1pF 1.8%8d1.8%50dParallel
200.00nF 0.01nF 1.5%10d1.5%50dSeries
2000.0nF 0.1nF 2.5%15d2.5%50dSeries

Resistance @ Ta=18~28C (De)

Frequency = 100Hz/120Hz

RangeResolutionRx AccuracyMeasurement Mode
200.00Ω 0.01Ω 1.2%10d---
2.0000kΩ 0.1Ω 0.8%5d---
20.000kΩ 0.9%5d---
200.00kΩ 0.01kΩ 0.7%3d---
2.0000MΩ 0.1kΩ 1.0%5d---
20.000MΩ 1kΩ 2.2%10d---
200.0MΩ 0.1MΩ 2.5%10d---

Frequency = 1kHz

RangeResolutionRx AccuracyMeasurement Mode
20.000Ω 1mΩ 1.2%10d---
200.00Ω 0.01Ω 0.8%5d---
2.0000kΩ 0.1Ω 0.8%3d---
20.000kΩ 0.7%3d---
200.00kΩ 0.01kΩ 1.0%5d---
2.0000MΩ 0.1kΩ 1.5%10d---
20.000MΩ 1kΩ 1.8%10d---
200.0MΩ 0.1MΩ 6.0%50d---

Frequency = 10kHz

RangeResolutionRx AccuracyMeasurement Mode
20.000Ω 1mΩ 1.5%10d---
200.00Ω 0.01Ω 0.8%10d---
2.0000kΩ 0.1Ω 0.9%5d---
20.000kΩ 0.8%3d---
200.00kΩ 0.01kΩ 1.0%5d---
2.0000MΩ 0.1kΩ 2.5%10d---
20.00MΩ 0.01MΩ 2.8%10d---

Frequency = 100kHz

RangeResolutionRx AccuracyMeasurement Mode
20.000Ω 1mΩ 2.3%10d---
200.00Ω 0.01Ω 1.5%5d---
2.0000kΩ 0.1Ω 0.8%20d---
20.000kΩ 0.8%20d---
200.00kΩ 0.01kΩ 1.5%10d---
2.000MΩ 1kΩ 2.5%30d---

DC resistance @ Ta=18~28C (De)

Frequency = 100Hz/120Hz/1kHz/10kHz/100kHz

RangeResolutionRx AccuracyMeasurement Mode
200.00Ω 0.01Ω 1.8%10d---
2.0000kΩ 0.1Ω 0.6%20d---
20.000kΩ 0.6%10d---
200.00kΩ 0.01kΩ 0.5%3d---
2.0000MΩ 0.1kΩ 1.5%5d---
20.000MΩ 1kΩ 2.0%5d---
200.0MΩ 0.1MΩ 2.5%5d---

D value Accuracy @ Ta=18~28C (De)

Freq./Z 0.1-1Ω1-10Ω10Ω–100kΩ100kΩ1MΩ120ΜΩ20−200MΩ

Θ value Accuracy @ Ta=18~28C

Freq./Z 0.1Ω-1Ω1-10Ω10Ω100kΩ100kΩ1MΩ120ΜΩ20−200MΩ
100/120Hz0.650.360.230.45 0.651.35

Size(H×W×D): 7.8×3.8×2.4in/200×96×60mm


1. Test leads

2. Test leads green

3. Tweezers

4. Probes

2. 6 x 1.5V “AA” batteries

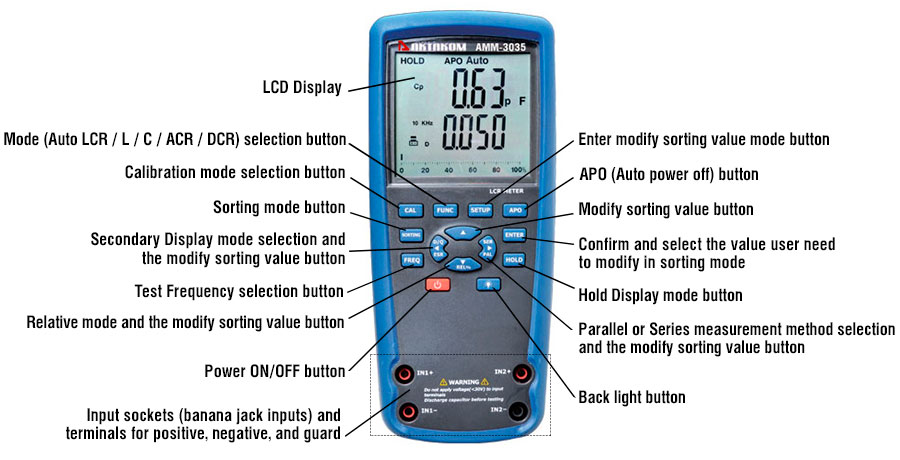

Controls of AKTAKOM AMM-3035 LCR Meter

Processing calibration before measurement

In order to improve the accuracy of high/low impedance, it is recommended to do OPEN/SHORT calibration mode before measurement. Press and hold down the button for 2 seconds to enter calibration mode. The calibration procedure: OPEN ready¹ →[CAL] → OPEN calibration (30s) →[CAL] → SHORT ready² → [CAL]→ SHORT calibration (30s) . During open or short calibration processing, the 30-second countdown will be shown on LCD panels. If the calibration procedure is finished, the PASS or FAIL symbol will shown on the primary display. If PASS symbol for both OPEN and SHORT modes, the calibration data will be saved after push CAL key again.

¹OPEN ready means the input sockets or terminals have nothing connected
²SHORT ready means put a shorting bar or a short piece of conductive metal (i.e. paper clip) across the “+” and “-” input sockets or terminals.

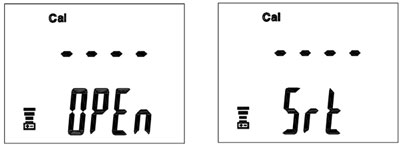

Open Calibration (left) and Short Calibration (right)

Sorting a bunch of components

The sorting mode could help the user to make a quick sort for a bunch of components. Select the primary measurement mode (L/C/R) based on the type of components to be measured. Insert the component to be used as the “standard” reference value. Another words, insert a known “good” component that will be used for testing against all other components. Press [SORTING] button to enter to the sorting mode. The sorting mode cannot be activated unless the meter senses a component is connected to either the input sockets or terminals . When sorting mode is activated, the reference value, range and the tolerance settings can be modified.
The setting process:
[SETUP]→ range setting(use </>) → [ENTER] → reference value setting (use ∧/∨/</>) →[ENTER] → tolerance setting(use </ >) →[ENTER] →sorting mode
The tolerance range setting selection: +0.25% → ±0.5% → ±1% → ±2% → ±5% → ±10% → ±20% →+80%-20%. The default tolerance is ±1%.

In the sorting mode, the primary display to show PASS or FAIL status depends on whether the impedance measured exceeds tolerance range. The current measurement result will be shown on the secondary display. Press the [SORTING] button to exit this mode.

WARNING: If the component to be measured is a capacitor, be sure that the capacitor is fully discharged BEFORE inserting it into the input sockets or terminals. For large capacitors, it may take longer periods of time for a full discharge. Inserting a charged or partially charged capacitor into the meter’s input sockets or terminals may produce an electric hazard and may also damage the instrument, making it unusable

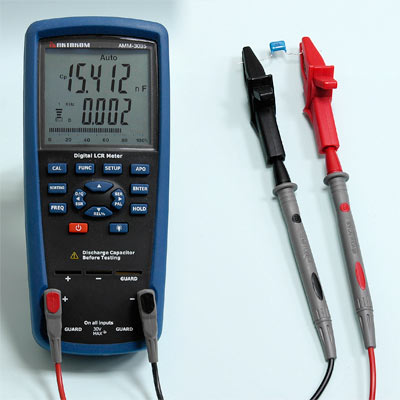

Capacitance measurement

Capacitance measurement

Inductance measurement

Inductance measurement

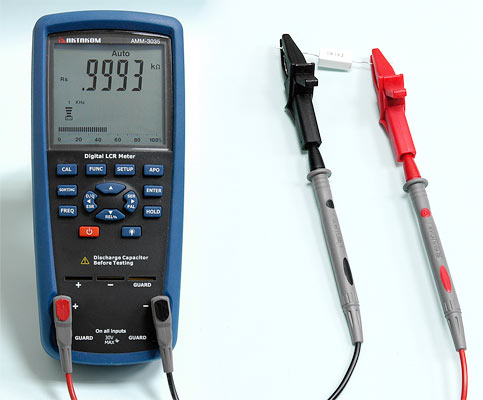

Resistance measurement

Resistance measurement
