AM-2002 Insulation Tester

AKTAKOM AM-2002 Insulation Tester
Click an image to enlarge
Brand: AKTAKOM
Warranty: 1 year
Manuals:
User's Manual (1.67 Mb)

Retail price: $175.00

Depending on a destination shipping cost may vary.
Free shipping for orders over $450
on items weighting under 20 lbs
(certain restrictions apply!)

See shipping page for international rates
or contact sales@tmatlantic.com

In stock

Buy Add to cart

AKTAKOM AM-2002 insulation tester is designed to help you to identify faulty or damaged insulation, which can lead to blown circuits and risk of electrical shock. AM-2002 insulation tester (analog of Lutron DI-6300) uses a high voltage, low current DC charge to measure the insulation resistance of wires. AM-2002 insulation tester (also known as megohmmeter) provides high accuracy measurements in a wide range at various test voltages.

AM-2002 Insulation Tester Features and Benefits

  • Insulation measurement range: 200MOhm (100V), 200MOhm (250V), 200MOhm (500V), 1000MOhm (1000V)
  • ACV & OHM measurement
  • Precision 200 Ohm range easy for measuring low resistance such as motor windings, relay coils etc.
  • Insulation measurement with high drive current, short circuit current >2.55mA
  • 18mm (0.7") large LCD display
  • LSI-circuit provides high reliability and durability
  • Overload protection for each range
  • Automatic zero adjust & automatic circuit discharge

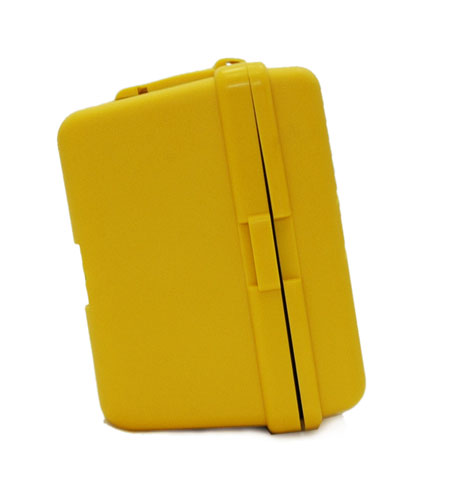

  • Durable & portable housing case with the front protective cover

Specifications

General specifications:

Display: 18mm (0.7") LCD (Liquid Crystal Display), Max indication 1999

Measurement:
Insulation: 200MOhm/100V, 200MOhm/250V, 200MOhm/500V, 1000MOhm/1000V
ACV: 600ACV
OHMS: 200Ohm
Sampling Time: 0.4s.
Megohm Respond Time: Max. approx. 2.5s
Zero Adjustment: Automatic adjustment
Overload: Indication of "1"
Operating Temp:. 0 to 50°C (0 to 122°F)
Operating Humidity: Less than 80%RH
Power Supply: DC 9V (6 x 1.5V AA battery, recommended to use the alkaline or heavy duty battery)

Power Consumption: Approx. 100mA (1000MOhm/1000V range)

  • Approx. 28mA (200MOhm/500V range)
  • Approx. 28mA (200MOhm/250V range)
  • Approx. 13mA (200MOhm/100V range)
  • Approx. 10mA (200Ohm/OHMS range)
  • Approx. 1.6mA (600ACV/ACV range)

Electrical specifications (23±5°C):

Insulation:

Range Accuracy Resolution Test voltage Short circuit current
200MOhm (100V) ±(3%+1d) 0.1MOhm >2M, 100V+5% Approx. 2.55 to 2.8mA
200MOhm (250V) ±(3%+1d) 0.1MOhm >2M, 250V+5%
200MOhm (500V) ±(3%+1d) 0.1MOhm >2M, 500V+5%
1000MOhm (1000V) ±(3%+1d) 1MOhm >10M, 1000V+5%

Remark: Accuracy are specified under the measuring value > 2Mohm

OHMS:

Range Accuracy Resolution Open Circuit Voltage Overload Circuit Protection
200Ohm ±(1%+1d) 0.1Ohm Approx. 3V AC/DC 500V (within 20s)

AC voltage:

Range Accuracy Resolution Input impedance Overload Circuit Protection
600ACV ±(1%+2d) 1ACV 4.5MOhm 600ACV

Dimensions: 6.3x4.7x3.3in / 160x120x85mm, with housing front cover
Weight: 1.3lb / 575g

Standard Accessories

  • User Manual

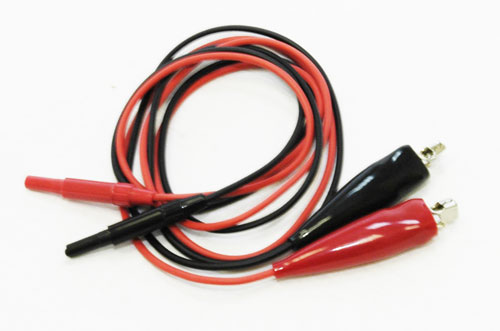

  • Alligator Clips

OHMS Measurement (Continuous Check)

Do not apply the external voltage to the input terminals!

  1. Connect the RED test plug into "ohm terminal" (3-5, Fig. 1)
  2. Connect the BLACK test plug into "COM terminal" (3-5, Fig. 1)
  3. Rotate the "Function/Range Switch" (3-2, Fig. 1) to the "200ohm" position.
  4. Connect test alligator clips into circuit under test.
  5. Push the "Test Button" (3-4, Fig. 1) for measurement.

Remark: A continuity beeper is equipped. If the measured resistance < approx. 50ohm, the beeper sounds will be generated.

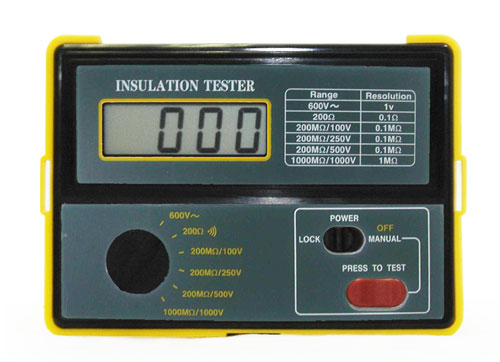

AM-2002 3-1 Display
3-2 Function/Range Switch
3-3 Power Lock/Manual(off) Switch
3-4 Test Button

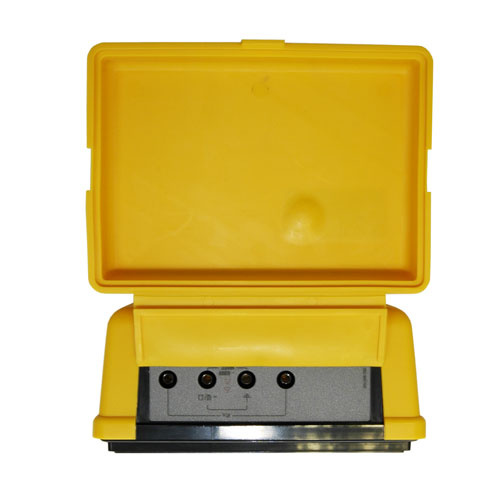

3-5 Input Terminal

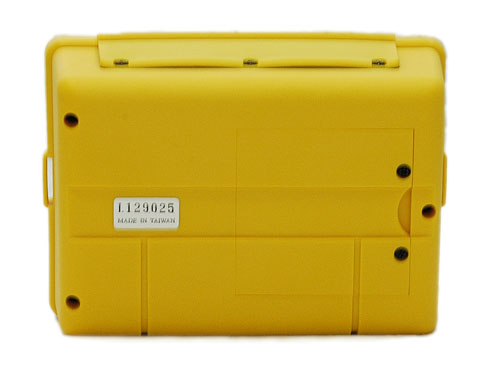

3-6 Battery Cover/Compartment

Mega OHM Measurement (Insulation Measurement)

Do not touch the input terminals & the test lead's pins during the measurements.
Do not apply external voltage to input terminals at any time.

  1. Connect the RED test plug into "Hi terminal" (3-5, Fig. 1)
  2. Connect the BLACK test plug into "Lo terminal" (3-5, Fig. 1)
  3. Rotate the "Function/Range Switch" (3-2, Fig. 1) to the "200Mohm/100V", "200Mohm/250V", "200M ohm/500V" or "1000Mohm/1000V" position according the user's requirement.
  4. Connect the test ALLIGATOR CLIPS into the circuit under test.
  5. Push the "Test Button" (3-4, Fig. 1) for measurement.

ACV Measurement

Do not apply the overload voltage to the input terminals!

  1. Connect the RED test plug into "ACV terminal" (3-5, Fig. 1)
  2. Connect the BLACK test plug into "COM terminal" (3-5, Fig. 1)
  3. Rotate the "Function/Range Switch" (3-2, Fig. 1) to the "600ACV" position.
  4. Connect test alligator clips into circuit under test.
  5. Push the "Test Button" (3-4, Fig. 1) for measurement.

El medidor de aislación AKTAKOM AM-2002 fue disenado para medir la tensión de aislamiento.

Características

  • Rango de medición del aislamiento: 200MOhm (100V), 200MOhm (250V), 200MOhm (500 V), 1000MOhm (1000)
  • Medición de ACV & OHM
  • Rango de precisión de 200 Ohm para mas fácil medición de la resistencia baja de bobinas del motor, bobinas de relé, etc
  • Mediciones del aislamiento con corriente alto voltaje. Corriente de cortocircuito 2.55mA
  • Pantalla LCD de 18mm (0.7")
  • Circuito LSI que proporciona una gran fiabilidad y durabilidad
  • Protección de sobrecarga para cada rango
  • Ajuste automático a cero y vaciado automático del circuito
  • Carcasa resistente y portátil caja con cubierta protectora delantera
